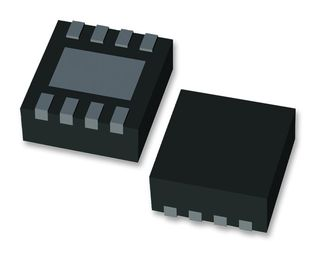

Please contact us for more photos of AT45DB161E-MHD2B-T
| Part Number | AT45DB161E-MHD2B-T |
|---|---|
| Manufacturer | Adesto |
| Quantity in stock | 286930 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Flash Serial-SPI 3.3V 16Mbit 6ns 8-Pin UDFN EP T R |
| Category | Memory IC |
| Family | Flash IC |
| ROHS Compliant | Yes |
| MSL Level | AT45DB161E-MHD2B-T |
| Datasheet download |  AT45DB161E-MHD2B-T.pdf |
| Part Number | AT45DB161E-MHD2B-T |
|---|---|
| Support of Page Mode | Yes |
| Screening Level | Industrial |
| ECC Support | No |
| Density | 16 Mb |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Supply Voltage | 2.5 V |
| Timing Type | Synchronous |
| Pin Count | 8 |
| Address Bus Width | 21 Bit |
| Page Size | 512 byte |
| Sector Size | 128 x 16 KB |
| Maximum Random Access Time | 6 ns |
| Block Organization | Symmetrical |
| Interface Type | Serial (SPI) |
| Typical Operating Supply Voltage | 3.3 V |
| Architecture | Sectored |
| Maximum Programming Time | 40/Page ms |
| Lead Finish | Gold |
| Maximum Erase Time | 40/Chip s |
| Command Compatible | Yes |
| Program Current | 18 mA |
| Supplier Package | UDFN EP |
| Simultaneous Read/Write Support | No |
| Mounting | Surface Mount |
| Rad Hard | No |
| Programming Voltage | 2.5 to 3.6 V |
| Product Dimensions | 5 x 6 x 0.53 mm |
| Boot Block | No |
| Operating Temperature | -40 to 85 °C |
| Maximum Operating Current | 26 mA |
| Erase Suspend/Resume Modes Support | Yes |
| Package | 8UDFN EP |
| Replacement Part Number | PART-AT45DB161E-MHD2B-T |
| Weight | Contact us |
| Country of Origin | - |
