Please contact us for more photos of 10039755-10003TLF
| Part Number | 10039755-10003TLF |
|---|---|
| Manufacturer | Amphenol-FCI |
| Quantity in stock | 601780 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn PCI Express Card SKT 164 POS 2mm Press Fit ST Thru-Hole Tray |
| Category | Connectors |
| Family | Connector Card Edge |
| ROHS Compliant | Yes |
| MSL Level | 10039755-10003TLF |
| Datasheet download |  10039755-10003TLF.pdf |
| Part Number | 10039755-10003TLF |
|---|---|
| Rad Hard | No |
| Operating Temperature | -55 to 85 °C |
| Max Processing Temp | 260 |
| Maximum Voltage Rating | 300 Vac |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Over Nickel |
| Card Thickness | 1.57 mm |
| Number of Rows | 2 |
| Termination Method | Press Fit |
| Maximum Contact Resistance | 40 mOhm |
| Housing Material | Nylon |
| Pitch | 2 mm |
| Housing Color | Black |
| Mounting | Through Hole |
| Maximum Current Rating | 1.1/Contact A |
| Product Dimensions | 89 x 9 x 11.25 mm |
| Lead Finish | Tin |
| Type | PCI Express Card |
| Body Orientation | Straight |
| Product Height | 11.25 mm |
| Replacement Part Number | PART-10039755-10003TLF |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Samtec | .8MM HIGH SPEED DUAL VERTICAL MOUNT EDGE CARD ASSEMBLY Download PDF datasheet for HSEC8-140-01-L-D-EM2.pdf |
|
Amphenol-FCI | Conn PCI Express Card SKT 98 POS 1mm Solder ST SMD Tray Download PDF datasheet for 10076266-112CLF.pdf |
|
Amphenol-FCI | Conn Power Card Edge 16Power 24Signal POS 1.27mm 2.54mm Solder RA Thru-Hole Tray Download PDF datasheet for 10118868-003LF.pdf |
|
Amphenol-FCI | Conn PCI Express Card SKT 164 POS 2mm Press Fit ST Thru-Hole Tray Download PDF datasheet for 10039755-10113TLF.pdf |
|
Amphenol-FCI | Conn Card Edge 16Signal 16Power POS 1.27mm Solder ST Thru-Hole Download PDF datasheet for 10130787-160016ALF.pdf |
|

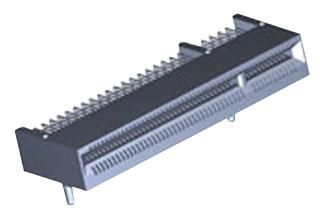

TE Connectivity | Conn PCI Express Card SKT 164 POS 1mm Solder RA Thru-Hole Download PDF datasheet for 1761465-4.pdf |
|
