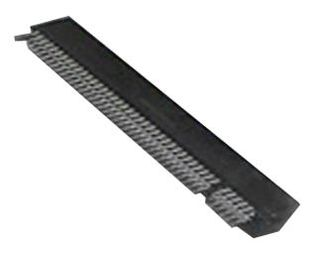

Please contact us for more photos of 10054652-10020TLF
| Part Number | 10054652-10020TLF |
|---|---|
| Manufacturer | Amphenol-FCI |
| Quantity in stock | 753390 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn PCI Express Card SKT 200 POS 2mm Solder ST Thru-Hole Tray |
| Category | Connectors |
| Family | Connector Card Edge |
| ROHS Compliant | Yes |
| MSL Level | 10054652-10020TLF |
| Datasheet download |  10054652-10020TLF.pdf |
| Part Number | 10054652-10020TLF |
|---|---|
| Number of Contacts | 200 |
| Termination Method | Solder |
| Lead Finish | Matte Tin |
| Pitch | 2 mm |
| Maximum Contact Resistance | 30 mOhm |
| Housing Color | Black |
| Mounting | Through Hole |
| Type | PCI Express Card |
| Body Orientation | Straight |
| Housing Material | Thermoplastic |
| Operating Temperature | -55 to 85 °C |
| Max Processing Temp | 260 |
| Rad Hard | No |
| Contact Plating | Gold Over Nickel |
| Number of Rows | 2 |
| Maximum Voltage Rating | 300 Vac |
| Card Thickness | 2.36 mm |
| Product Dimensions | 107 x 11.25 mm |
| Contact Material | Copper Alloy |
| Product Height | 11.25 mm |
| Replacement Part Number | PART-10054652-10020TLF |
| Weight | Contact us |
| Country of Origin | - |
