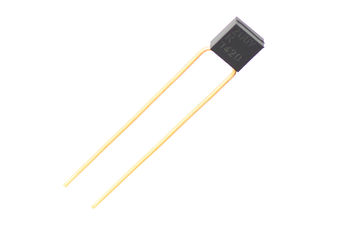

Please contact us for more photos of SR155C103KAR
| Part Number | SR155C103KAR |
|---|---|
| Manufacturer | AVX |
| Quantity in stock | 167830 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Ceramic 0.01uF 50V X7R 10% Radial 2.54mm 125\u00b0C Bulk |
| Category | Capacitors |
| Family | Capacitor Ceramic Multilayer |
| ROHS Compliant | Yes |
| MSL Level | SR155C103KAR |
| Datasheet download |  SR155C103KAR.pdf |
| Part Number | SR155C103KAR |
|---|---|
| Dielectric | X7R |
| Lead Pitch For Radial | 2.54 mm |
| Package/Case | 3.81(Max) X 2.54(Max) X 3.81(Max) |
| Voltage(DC) | 50 V |
| Capacitance Value | 0.01 uF |
| Product Dimensions | 3.81 x 2.54 x 3.81 mm |
| Mounting | Through Hole |
| Failure Rate | |
| Seated Plane Height | 5.33 mm |
| Case Style | Dipped |
| Wire Form | Straight |
| Rad Hard | No |
| Tolerance | 10 % |
| Operating Temperature | -55 to 125 °C |
| Termination Style | Radial |
| Lead Diameter | 0.508 mm |
| Max Processing Temp | 260 |
| MSL Level | 1 |
| Lead Finish | Matte Tin |
| Military Standard | |
| Product Depth | 2.54(Max) mm |
| Product Height | 3.81(Max) mm |
| Product Length | 3.81(Max) mm |
| Replacement Part Number | PART-SR155C103KAR |
| Weight | Contact us |
| Country of Origin | - |
