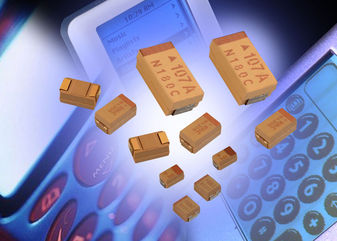

Please contact us for more photos of TAJB226K006RNJ
| Part Number | TAJB226K006RNJ |
|---|---|
| Manufacturer | AVX |
| Quantity in stock | 614760 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Tant Solid 22uF 6.3V B CASE 10% (3.5 X 2.8 X 1.9mm) SMD 3528-21 2.5 Ohm 125\u00b0C T R |
| Category | Capacitors |
| Family | Capacitor Tantalum Solid SMT |
| ROHS Compliant | Yes |
| MSL Level | TAJB226K006RNJ |
| Datasheet download |  TAJB226K006RNJ.pdf |
| Part Number | TAJB226K006RNJ |
|---|---|
| Construction | Flat |
| Military Standard | |
| Polarity | Polar |
| Mounting | Surface Mount |
| Lead Finish | Matte Tin |
| Equivalent Series Resistance | |
| Package/Case | 3528-21,B |
| Product Dimensions | 3.5 x 2.8 x 1.9 mm |
| MSL Level | 1 |
| Operating Temperature | -55 to 125 °C |
| Capacitance Value | 22 uF |
| Failure Rate | M |
| Dissipation Factor | |
| Leakage Current | |
| Case Code | B |
| Case Size | 3528-21 |
| Voltage(DC) | 6.3 V |
| Rad Hard | No |
| Case Style | Molded |
| Max Processing Temp | 260 |
| Tolerance | 10 % |
| Product Depth | 2.8 mm |
| Product Height | 1.9 mm |
| Product Length | 3.5 mm |
| Replacement Part Number | PART-TAJB226K006RNJ |
| Weight | Contact us |
| Country of Origin | - |
