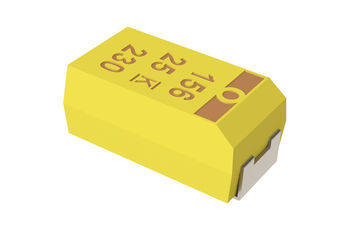

Please contact us for more photos of TAJD685K035RNJV
| Part Number | TAJD685K035RNJV |
|---|---|
| Manufacturer | AVX |
| Quantity in stock | 799550 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Tant Solid 6.8uF 35V D CASE 10% (7.3 X 4.3 X 2.9mm) SMD 7343-31 1.3 Ohm 125\u00b0C T R |
| Category | Capacitors |
| Family | Capacitor Tantalum Solid SMT |
| ROHS Compliant | Yes |
| MSL Level | TAJD685K035RNJV |
| Datasheet download |  TAJD685K035RNJV.pdf |
| Part Number | TAJD685K035RNJV |
|---|---|
| MSL Level | 3 |
| Military Standard | |
| Package/Case | 7343-31,D |
| Polarity | Polar |
| Mounting | Surface Mount |
| Case Code | D |
| Product Dimensions | 7.3 x 4.3 x 2.9 |
| Lead Finish | Pure Tin |
| Capacitance Value | 6.8 uF |
| Construction | Flat |
| Equivalent Series Resistance | |
| Voltage(DC) | 35 V |
| Operating Temperature | -55 to 125 °C |
| Failure Rate | M |
| Dissipation Factor | |
| Leakage Current | |
| Case Size | 2917 |
| Supplier Package | 2917 |
| Pin Count | 2 |
| Tolerance | 10 % |
| Rad Hard | No |
| Max Processing Temp | 260 |
| Case Style | Molded |
| Product Depth | 4.3 mm |
| Product Height | 2.9 mm |
| Product Length | 7.3 mm |
| Product Weight | 0.29 G |
| Replacement Part Number | PART-TAJD685K035RNJV |
| Weight | Contact us |
| Country of Origin | - |
