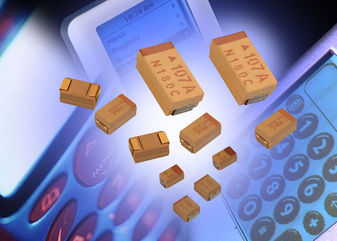

Please contact us for more photos of TAJS106K010RNJ
| Part Number | TAJS106K010RNJ |
|---|---|
| Manufacturer | AVX |
| Quantity in stock | 797690 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Tant Solid 10uF 10V S CASE 10% (3.2 X 1.6 X 1.2mm) SMD 3216-12 4 Ohm 125\u00b0C T R |
| Category | Capacitors |
| Family | Capacitor Tantalum Solid SMT |
| ROHS Compliant | Yes |
| MSL Level | TAJS106K010RNJ |
| Datasheet download |  TAJS106K010RNJ.pdf |
| Part Number | TAJS106K010RNJ |
|---|---|
| Case Size | 3216-12 |
| Construction | Flat |
| Dissipation Factor | 8 % |
| Polarity | Polar |
| Lead Finish | Matte Tin |
| Failure Rate | M |
| Military Standard | |
| Case Code | S |
| Package/Case | 3216-12,S |
| Product Dimensions | 3.2 x 1.6 x 1.2 mm |
| Case Style | Molded |
| Rad Hard | No |
| Tolerance | 10 % |
| Voltage(DC) | 10 V |
| Capacitance Value | 10 uF |
| Operating Temperature | -55 to 125 °C |
| Mounting | Surface Mount |
| Max Processing Temp | 260 |
| Leakage Current | 1 uA |
| MSL Level | 1 |
| Equivalent Series Resistance | 4 Ohm |
| Product Depth | 1.6 mm |
| Product Height | 1.2(Max) mm |
| Product Length | 3.2 mm |
| Replacement Part Number | PART-TAJS106K010RNJ |
| Weight | Contact us |
| Country of Origin | - |
