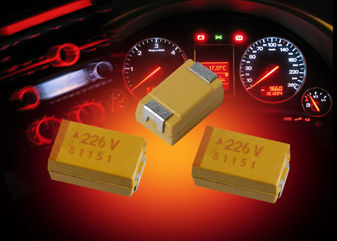

Please contact us for more photos of TPSA226M006R0500
| Part Number | TPSA226M006R0500 |
|---|---|
| Manufacturer | AVX |
| Quantity in stock | 133920 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Tant Solid 22uF 6.3V A CASE 20% (3.2 X 1.6 X 1.6mm) SMD 3216-18 0.5 Ohm 125\u00b0C T R |
| Category | Capacitors |
| Family | Capacitor Tantalum Solid SMT |
| ROHS Compliant | Yes |
| MSL Level | TPSA226M006R0500 |
| Datasheet download |  TPSA226M006R0500.pdf |
| Part Number | TPSA226M006R0500 |
|---|---|
| Package/Case | 3216-18,A |
| Leakage Current | |
| Construction | Flat |
| Lead Finish | Matte Tin |
| Case Size | 3216-18 |
| Mounting | Surface Mount |
| Polarity | Polar |
| Operating Temperature | -55 to 125 °C |
| MSL Level | 1 |
| Capacitance Value | 22 uF |
| Failure Rate | |
| Equivalent Series Resistance | |
| Dissipation Factor | |
| Military Standard | |
| Max Processing Temp | 260 |
| Rad Hard | No |
| Product Dimensions | 3.2 x 1.6 x 1.6 mm |
| Case Style | Molded |
| Tolerance | 20 % |
| Voltage(DC) | 6.3 V |
| Product Depth | 1.6 mm |
| Product Height | 1.6 mm |
| Product Length | 3.2 mm |
| Replacement Part Number | PART-TPSA226M006R0500 |
| Weight | Contact us |
| Country of Origin | - |
