Please contact us for more photos of 4816P-1-561LF
| Part Number | 4816P-1-561LF |
|---|---|
| Manufacturer | Bourns |
| Quantity in stock | 162740 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film NET 560 Ohm 2% 1.28W \u00b1100ppm \u00b0C ISOL Molded 16-Pin SOM Gull Wing SMD T R |
| Category | Resistor |
| Family | Resistor Networks and Arrays |
| ROHS Compliant | Yes |
| MSL Level | 4816P-1-561LF |
| Datasheet download |  4816P-1-561LF.pdf |
| Part Number | 4816P-1-561LF |
|---|---|
| Rad Hard | No |
| Max Processing Temp | 260 |
| Resistance Value | 560 Ohm |
| Case Style | Molded |
| Power Rating | 1.28 W |
| Technology | Thick Film |
| Terminal Pitch | 1.27 mm |
| Product Dimensions | 11.18 x 7.62 x 2.16 mm |
| Mounting | Surface Mount |
| Tolerance | 2 % |
| Termination Style | Gull Wing |
| Lead Finish | Tin |
| MSL Level | 1 |
| Power Rating per Resistor | 4/25 W |
| Operating Temperature | -55 to 125 °C |
| Temperature Coefficient | ±100 ppm/°C |
| Product Depth | 7.62 mm |
| Product Height | 2.16 mm |
| Product Length | 11.18 mm |
| Replacement Part Number | PART-4816P-1-561LF |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
ROHM | Res Thick Film Network 22K Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 8-Pin 1206 Convex 1206 SMD Paper T R Download PDF datasheet for MNR14E0ABJ223.pdf |
|
Panasonic | Res Thick Film Array 4.7K Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 8-Pin 1206(4 X 0603) Convex SMD Punched Carrier T R Download PDF datasheet for EXB38V472JV.pdf |
|
Stackpole | Res Thick Film Array 47K Ohm 5% 1 4W \u00b1200ppm \u00b0C ISOL Molded 8-Pin 0804(4 X 0402) Convex SMD T R Download PDF datasheet for RAVF104DJT47K0.pdf |
|
Bourns | Res Thick Film Array 220K Ohm 5% \u00b1200ppm \u00b0C BUS Molded 10-Pin 1608 Concave SMD Embossed T R Download PDF datasheet for CAT25-224JALF.pdf |
|
Bourns | Res Thick Film NET 10K Ohm 2% 1.25W \u00b1100ppm \u00b0C BUS Conformal 10-Pin SIP Pin Thru-Hole Bulk Download PDF datasheet for 4610X-101-103LF.pdf |
|

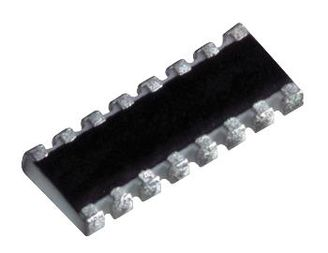

Panasonic | Res Thick Film Array 56 Ohm 5% 1 4W \u00b1200ppm \u00b0C ISOL Molded 16-Pin 1506(8 X 0402) Convex SMD Punched Carrier T R Download PDF datasheet for EXB2HV560JV.pdf |
|
