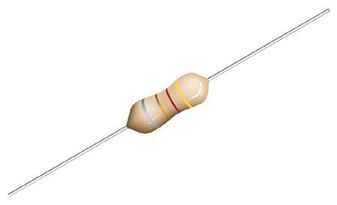

Please contact us for more photos of 8230-06-RC
| Part Number | 8230-06-RC |
|---|---|
| Manufacturer | Bourns |
| Quantity in stock | 613230 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Ind RF Choke 270nH 10% 25MHz 33Q-Factor Phenolic 875mA AXL Bag |
| Category | Inductor |
| Family | Inductor Leaded |
| ROHS Compliant | Yes |
| MSL Level | 8230-06-RC |
| Datasheet download |  8230-06-RC.pdf |
| Part Number | 8230-06-RC |
|---|---|
| Rad Hard | No |
| Tolerance | 10 % |
| Product Dimensions | 7.62 mm |
| Package/Case | 3.05 X 7.62 |
| Operating Temperature | -55 to 105 °C |
| Lead Style | Axial |
| Type | RF Choke |
| Test Frequency | 25 MHz |
| Maximum Self Resonant Frequency | |
| Lead Finish | Tin |
| Maximum DC Resistance | |
| Minimum Quality Factor | |
| Impedance | |
| Core Material | |
| Maximum DC Current | |
| Inductance | |
| Product Diameter | 3.05 mm |
| Product Length | 7.62 mm |
| Replacement Part Number | PART-8230-06-RC |
| Weight | Contact us |
| Country of Origin | - |
