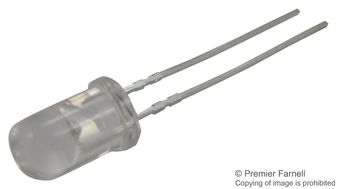

HLMP-EG3G-VX000 Broadcom

Please contact us for more photos of HLMP-EG3G-VX000

Part Number	HLMP-EG3G-VX000
Manufacturer	Broadcom
Quantity in stock	272960 Pieces
Market Price	-
Our Better Price	Send by email: [email protected]
Delivery Time	1 day (can ship today)
Description	LED Uni-Color Red 626nm Standard LED 2-Pin T-1 3 4
Category	Lighting
Family	HB LEDs
ROHS Compliant	Yes
MSL Level	HLMP-EG3G-VX000
Datasheet download	HLMP-EG3G-VX000.pdf

Request Quotation for HLMP-EG3G-VX000

HLMP-EG3G-VX000 Specifications

Part Number	HLMP-EG3G-VX000
Lens Shape Type	Circular
Intensity	9300(Max) mcd
Maximum Forward Current	50 mA
Mounting Orientation	Top Mount
Number of LEDs	1
Mounting	Through Hole
Dominant Wavelength	626 nm
Lead Finish	Tin
Operating Temperature	-40 to 100 °C
LED Material	AlGaInP
Maximum Power Dissipation	120 mW
Reverse Voltage	5 V
Type	Uni-Color
Lens Dimensions	5 x 7.57 mm
Viewing Angle	30 °
Product Dimensions	5.8 x 8.7
Color	Red
Supplier Package	T-1 3/4
Maximum Forward Voltage per Color	2.4 V
Rad Hard	No
Lens Appearance	Colored Non Diffused
Peak Wavelength	635 nm
Pin Count	2
Max Processing Temp	260
Category	Standard LED
Package	2T-1 3/4
Replacement Part Number	PART-HLMP-EG3G-VX000
Weight	Contact us
Country of Origin	-
