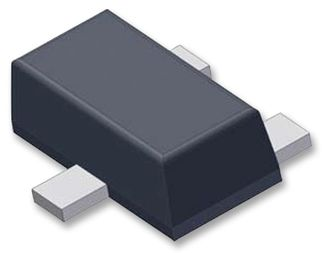

Please contact us for more photos of DTC115EKAT146
| Part Number | DTC115EKAT146 |
|---|---|
| Manufacturer | ROHM |
| Quantity in stock | 377940 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Trans Digital BJT NPN 100mA 3-Pin SMT T R |
| Category | Discrete Semiconductor |
| Family | Bipolar Transistor |
| ROHS Compliant | Yes |
| MSL Level | DTC115EKAT146 |
| Datasheet download |  DTC115EKAT146.pdf |
| Part Number | DTC115EKAT146 |
|---|---|
| Mounting | Surface Mount |
| Product Dimensions | 2.9 x 1.6 x 1.1 mm |
| Peak DC Collector Current | 100 mA |
| Supplier Package | SMT |
| Pin Count | 3 |
| Max Processing Temp | 260|265 |
| Typical Input Resistor | 100 kOhm |
| Operating Temperature | -55 to 150 °C |
| Minimum DC Current Gain | 82@5mA@5V |
| Rad Hard | No |
| Lead Finish | Tin/Silver/Copper |
| Configuration | Single |
| Type | NPN |
| Package | 3SMT |
| Replacement Part Number | PART-DTC115EKAT146 |
| Weight | Contact us |
| Country of Origin | - |
