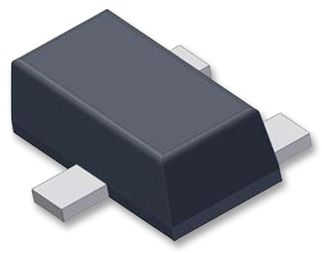

Please contact us for more photos of UMD5NTR
| Part Number | UMD5NTR |
|---|---|
| Manufacturer | ROHM |
| Quantity in stock | 682490 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Trans Digital BJT NPN PNP 100mA 6-Pin UMT T R |
| Category | Discrete Semiconductor |
| Family | Bipolar Transistor |
| ROHS Compliant | Yes |
| MSL Level | UMD5NTR |
| Datasheet download |  UMD5NTR.pdf |
| Part Number | UMD5NTR |
|---|---|
| Minimum DC Current Gain | 68@5mA@5V@NPN|30@10mA@5V@PNP |
| Operating Temperature | -55 to 150 °C |
| Rad Hard | No |
| Type | NPN|PNP |
| Configuration | Dual |
| Lead Finish | Tin/Copper |
| Mounting | Surface Mount |
| Max Processing Temp | 260|265 |
| Pin Count | 6 |
| Supplier Package | UMT |
| Product Dimensions | 2 x 1.25 x 0.9 mm |
| Peak DC Collector Current | 100 mA |
| Typical Input Resistor | 47@NPN|4.7@PNP kOhm |
| Package | 6UMT |
| Replacement Part Number | PART-UMD5NTR |
| Weight | Contact us |
| Country of Origin | - |
