Part Number | ADZS12112M07 |
---|---|
Manufacturer | Panasonic |
Quantity in stock | 385550 Pieces |
Market Price | - |
Our Better Price | Send by email: [email protected] |
Delivery Time | 1 day (can ship today) |
Description | Electromechanical Relay SPST-NO 90A 12VDC 96Ohm Bracket Mount |
Category | Switches and Relays |
Family | Relays |
ROHS Compliant | Yes |
MSL Level | ADZS12112M07 |
Datasheet download | ![]() |
Part Number | ADZS12112M07 |
---|---|
Contact Arrangement | SPST-NO |
Minimum Dropout Voltage | 8.4 Vdc |
Contact Material | Silver Tin Oxide |
Maximum Current Rating | 90 A |
Relay Construction | Latching Single Coil |
Operate Time | 20 ms |
Package Dimensions | 48.9 x 17.5 x 48 mm |
Maximum Power Rating | 24.84 kVA |
DC Coil Voltage | 12 V |
Maximum AC Voltage Rating | 276 V |
Maximum Pick-Up Voltage | 8.4 Vdc |
Mounting | Bracket Mount |
Rad Hard | No |
Coil Resistance | 96 Ohm |
Pin Count | 3 |
Operating Temperature | -40 to 85 °C |
Coil Current | 125 mA |
Termination Style | PC Pins |
Type | Latching Relay |
Product Depth | 17.5 mm |
Product Height | 48 mm |
Product Length | 48.9 mm |
Replacement Part Number | PART-ADZS12112M07 |
Weight | Contact us |
Country of Origin | - |
Image | Part Number and Brand | Brief Description and PDF Datasheet |
---|---|---|
Panasonic | Electromechanical Relay SPST-NO 10(NO) 3(NC)A 12VDC 720Ohm Through Hole Download PDF datasheet for JQ1AP12FT.pdf |
|
Broadcom | Relay SSR 20mA 1.65V DC-IN 0.2A 250V AC DC-OUT 4-Pin SOIC Tube Download PDF datasheet for ASSR-3210-003E.pdf |
|
TE Connectivity | Electromechanical Relay SPST-NO 12A 24VDC 1.44KOhm Through Hole Download PDF datasheet for 2-1393242-1.pdf |
|
Panasonic | Electromechanical Relay DPDT 1A 12VDC 1.44KOhm Surface Mount Download PDF datasheet for AGN210A12Z.pdf |
|
TE Connectivity | Electromechanical Relay DPDT 2A 3VDC 90Ohm Through Hole Download PDF datasheet for 1-1462038-9.pdf |
|
TE Connectivity | Electromechanical Relay SPST-NO 5A 12VDC 1.2KOhm Through Hole Download PDF datasheet for 1721441-5.pdf |
|
Panasonic | Electromechanical Relay DPDT 2A 48VDC 7.68KOhm Surface Mount Download PDF datasheet for TQ2SA48ZJ.pdf |
|
TE Connectivity | Electromechanical Relay SPDT-NO 16A 12V 272Ohm Through Hole Download PDF datasheet for 4-2158100-6.pdf |
|

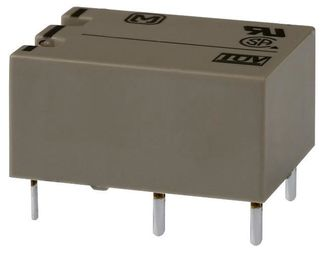

Panasonic | Electromechanical Relay SPST-NO SPST-NC 8A 5VDC 125Ohm Through Hole Download PDF datasheet for DK1a1b-5V.pdf |
|
