PESD5V0L2UU115 Nexperia

PESD5V0L2UU115 Images

Please contact us for more photos of PESD5V0L2UU115

Part Number	PESD5V0L2UU115
Manufacturer	Nexperia
Quantity in stock	378230 Pieces
Market Price	-
Our Better Price	Send by email: [email protected]
Delivery Time	1 day (can ship today)
Description	ESD Suppressor TVS 30KV 3-Pin SC-70 T R
Category	Discrete Semiconductor
Family	Diode
ROHS Compliant	Yes
MSL Level	PESD5V0L2UU115
Datasheet download	PESD5V0L2UU115.pdf

Request Quotation for PESD5V0L2UU115

PESD5V0L2UU115 Specifications

Part Number	PESD5V0L2UU115
Rad Hard	No
Pin Count	3
Mounting	Surface Mount
Type	TVS
Lead Finish	Tin
Number of Elements per Chip	2
MSL Level	1
Direction Type	Uni-Directional
Maximum Clamping Voltage	13 V
Capacitance Value	46 pF
Product Dimensions	2.2 x 1.35 x 1 mm
Max Processing Temp	260
Maximum Leakage Current	0.09 uA
Maximum Working Voltage	5 V
Supplier Package	SC-70
ESD Protection Voltage	30@Contact Disc/16@HBM kV
Replacement Part Number	PART-PESD5V0L2UU115
Weight	Contact us
Country of Origin	-

Related parts for PESD5V0L2UU115

Image	Part Number and Brand	Brief Description and PDF Datasheet
	MM5Z3V9 Fairchild Semiconductor	Diode Zener Single 3.9V 5% 200mW 2-Pin SOD-523F T R Download PDF datasheet for MM5Z3V9.pdf

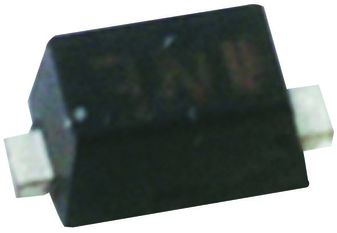

	ESD5B5.0ST1G ON Semiconductor	ESD Suppressor TVS 30KV 2-Pin SOD-523 T R Download PDF datasheet for ESD5B5.0ST1G.pdf

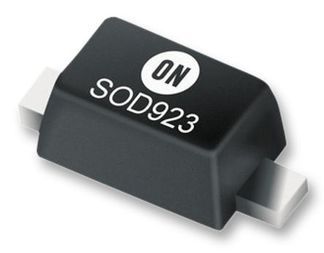

	NZ9F2V4ST5G ON Semiconductor	Diode Zener Single 2.53V 4% 200mW 2-Pin SOD-923 T R Download PDF datasheet for NZ9F2V4ST5G.pdf
