Please contact us for more photos of PESD5V0L5UY,125
| Part Number | PESD5V0L5UY,125 |
|---|---|
| Manufacturer | Nexperia |
| Quantity in stock | 178560 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | ESD Suppressor TVS 20KV 6-Pin TSSOP T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | PESD5V0L5UY,125 |
| Datasheet download |  PESD5V0L5UY,125.pdf |
| Part Number | PESD5V0L5UY,125 |
|---|---|
| Maximum Leakage Current | 0.025 uA |
| Direction Type | Uni-Directional |
| ESD Protection Voltage | 20@Contact Disc/10@HBM kV |
| Product Dimensions | 2.2 x 1.35 x 1 mm |
| Max Processing Temp | 260 |
| Capacitance Value | 19 pF |
| Maximum Working Voltage | 5 V |
| Number of Elements per Chip | 5 |
| Maximum Clamping Voltage | 12 V |
| Supplier Package | TSSOP |
| Rad Hard | No |
| Mounting | Surface Mount |
| Pin Count | 6 |
| Lead Finish | Tin |
| Type | TVS |
| MSL Level | 1 |
| Replacement Part Number | PART-PESD5V0L5UY,125 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|

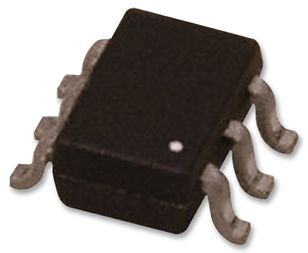

Panasonic | Diode Switching 80V 0.1A 6-Pin SC-74 Embossed T R Download PDF datasheet for DA6X101K0R.pdf |
|
