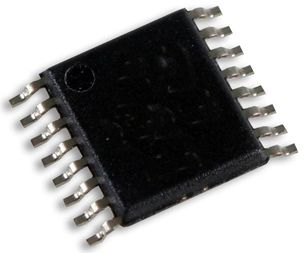

Please contact us for more photos of MC74AC273DTR2G
| Part Number | MC74AC273DTR2G |
|---|---|
| Manufacturer | ON Semiconductor |
| Quantity in stock | 561670 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Flip Flop D-Type Bus Interface Pos-Edge 1-Element 20-Pin TSSOP T R |
| Category | Logic & Timing IC |
| Family | Logic ICs |
| ROHS Compliant | Yes |
| MSL Level | MC74AC273DTR2G |
| Datasheet download |  MC74AC273DTR2G.pdf |
| Part Number | MC74AC273DTR2G |
|---|---|
| Logic Family | AC |
| Mounting | Surface Mount |
| Pin Count | 20 |
| Set/Reset | Master Reset |
| Minimum Operating Supply Voltage | 2 V |
| Number of Element Inputs | 8 |
| Supplier Package | TSSOP |
| Triggering Type | Positive-Edge |
| Number of Element Outputs | 8 |
| Number of Output Enables per Element | 0 |
| Output Signal Type | Single-Ended |
| Number of Channels per Chip | 8 |
| Typical Operating Supply Voltage | 5 V |
| Max Processing Temp | 260 |
| MSL Level | 1 |
| Logic Function | D-Type Bus Interface |
| Maximum Quiescent Current | 0.008 mA |
| Maximum High Level Output Current | -24 mA |
| Maximum Low Level Output Current | 24 mA |
| Lead Finish | Gold |
| Rad Hard | No |
| Operating Temperature | -40 to 85 °C |
| Maximum Operating Supply Voltage | 6 V |
| Maximum Propagation Delay Time @ Maximum CL | [email protected]|10@5V ns |
| Product Dimensions | 6.6 x 4.5 x 1.05 mm |
| Number of Elements per Chip | 1 |
| Fabrication Technology | CMOS |
| Bus Hold | No |
| Input Signal Type | Single-Ended |
| Propagation Delay Test Condition | 50 pF |
| Polarity | Non-Inverting |
| Package | 20TSSOP |
| Replacement Part Number | PART-MC74AC273DTR2G |
| Weight | Contact us |
| Country of Origin | - |
