Part Number | 2SA1797T100P |
---|---|
Manufacturer | ROHM |
Quantity in stock | 756000 Pieces |
Market Price | - |
Our Better Price | Send by email: [email protected] |
Delivery Time | 1 day (can ship today) |
Description | Trans GP BJT PNP 50V 3A 4-Pin(3+Tab) MPT T R |
Category | Discrete Semiconductor |
Family | Bipolar Transistor |
ROHS Compliant | Yes |
MSL Level | 2SA1797T100P |
Datasheet download | ![]() |
Part Number | 2SA1797T100P |
---|---|
Mounting | Surface Mount |
Pin Count | 4 |
Minimum DC Current Gain | 82@500mA@2V |
Maximum Collector Emitter Saturation Voltage | 0.35@50mA@1A V |
Maximum Collector Emitter Voltage | 50 V |
Max Processing Temp | 260|265 |
Maximum Collector Base Voltage | 50 V |
Maximum Power Dissipation | 2000 mW |
Supplier Package | MPT |
Type | PNP |
Operating Temperature | -55 to 150 °C |
Rad Hard | No |
Lead Finish | Tin/Copper |
Maximum DC Collector Current | 3 A |
Maximum Emitter Base Voltage | 6 V |
Product Dimensions | 4.5 x 2.5 x 1.5 mm |
Package | 4MPT |
Replacement Part Number | PART-2SA1797T100P |
Weight | Contact us |
Country of Origin | - |
Image | Part Number and Brand | Brief Description and PDF Datasheet |
---|---|---|
ROHM | Trans GP BJT NPN 30V 1.5A 3-Pin SMT T R Download PDF datasheet for 2SD2657KT146.pdf |
|
Nexperia | Trans GP BJT PNP 100V 0.1A 3-Pin TO-236AB T R Download PDF datasheet for BSS63,215.pdf |
|
STMicroelectronics | Trans Darlington NPN 50V 0.5A 16-Pin SO T R Download PDF datasheet for ULN2001D1013TR.pdf |
|
ON Semiconductor | Trans GP BJT NPN 250V 8A 3-Pin(3+Tab) TO-220AB Rail Download PDF datasheet for MJE15032G.pdf |
|
Nexperia | Trans GP BJT NPN 300V 0.2A 4-Pin(3+Tab) SOT-89 T R Download PDF datasheet for PXTA42,115.pdf |
|
Nexperia | Trans GP BJT NPN 45V 0.1A 3-Pin DFN T R Download PDF datasheet for BC847BM315.pdf |
|
Nexperia | Trans Digital BJT NPN 50V 100mA 3-Pin TO-236AB T R Download PDF datasheet for PDTC123TT,215.pdf |
|
NXP | Trans GP BJT PNP 15V 0.1A 4-Pin(3+Tab) SOT-89 T R Download PDF datasheet for BFQ149,115.pdf |
|

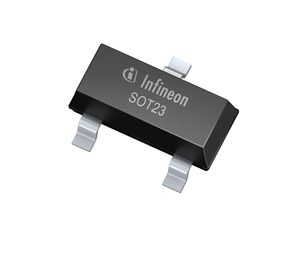

Infineon | Trans GP BJT NPN 45V 0.1A 3-Pin SOT-23 T R Download PDF datasheet for BCX 70G E6327.pdf |
|
