NSS12201LT1G ON Semiconductor

NSS12201LT1G Images

Please contact us for more photos of NSS12201LT1G

Part Number NSS12201LT1G
Manufacturer ON Semiconductor
Quantity in stock 765610 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Trans GP BJT NPN 12V 2A 3-Pin SOT-23 T R
Category Discrete Semiconductor
Family Bipolar Transistor
ROHS Compliant Yes
MSL Level NSS12201LT1G
Datasheet download NSS12201LT1G.pdf
Request Quotation for NSS12201LT1G

NSS12201LT1G Specifications

Part Number NSS12201LT1G
Operating Temperature -55 to 150 °C
Maximum Collector Emitter Saturation Voltage [email protected]@0.1A|[email protected]@1A|[email protected]@1A|[email protected]@2A V
Pin Count 3
Product Dimensions 2.9 x 1.3 x 0.94 mm
Maximum Collector Emitter Voltage 12 V
Maximum Power Dissipation 540 mW
Minimum DC Current Gain 200@10mA@2V|200@500mA@2V|200@1A@2V|200@2A@2V
Maximum Collector Base Voltage 12 V
Maximum Base Emitter Saturation Voltage 0.9@10mA@1A V
Type NPN
Supplier Package SOT-23
Maximum DC Collector Current 2 A
Mounting Surface Mount
Rad Hard No
Max Processing Temp 260
Lead Finish Matte Tin
MSL Level 1
Maximum Emitter Base Voltage 6 V
Package 3SOT-23
Replacement Part Number PART-NSS12201LT1G
Weight Contact us
Country of Origin -

Related parts for NSS12201LT1G

Image Part Number and Brand Brief Description and PDF Datasheet

2SD1782KT146R

ROHM

Trans GP BJT NPN 80V 0.5A 3-Pin SMT T R

Download PDF datasheet for 2SD1782KT146R.pdf

BC847CW,115

Nexperia

Trans GP BJT NPN 45V 0.1A 3-Pin SC-70 T R

Download PDF datasheet for BC847CW,115.pdf

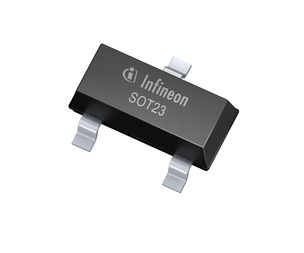

SMBT2222AE6327
