Please contact us for more photos of PBSS4350X,115
| Part Number | PBSS4350X,115 |
|---|---|
| Manufacturer | Nexperia |
| Quantity in stock | 771280 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Trans GP BJT NPN 50V 3A 4-Pin(3+Tab) SOT-89 T R |
| Category | Discrete Semiconductor |
| Family | Bipolar Transistor |
| ROHS Compliant | Yes |
| MSL Level | PBSS4350X,115 |
| Datasheet download |  PBSS4350X,115.pdf |
| Part Number | PBSS4350X,115 |
|---|---|
| Rad Hard | No |
| Maximum Power Dissipation | 1600 mW |
| Minimum DC Current Gain | [email protected]@2V|[email protected]@2V|300@1A@2V|200@2A@2V|100@3A@2V |
| Pin Count | 4 |
| MSL Level | 1 |
| Lead Finish | Tin |
| Maximum Base Emitter Saturation Voltage | 1.1@100mA@2A|1.2@300mA@3A V |
| Mounting | Surface Mount |
| Operating Temperature | -65 to 150 °C |
| Supplier Package | SOT-89 |
| Maximum Collector Emitter Voltage | 50 V |
| Maximum Collector Base Voltage | 50 V |
| Product Dimensions | 4.6 x 2.6 x 1.6 mm |
| Max Processing Temp | 260 |
| Maximum Collector Emitter Saturation Voltage | 0.08@[email protected]|0.16@50mA@1A|0.28@100mA@2A|0.26@200mA@2A|0.37@300mA@3A V |
| Maximum DC Collector Current | 3 A |
| Type | NPN |
| Maximum Emitter Base Voltage | 5 V |
| Package | 4SOT-89 |
| Replacement Part Number | PART-PBSS4350X,115 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Panasonic | Trans Digital BJT NPN 50V 100mA 5-Pin SSMini5-F4-B Embossed T R Download PDF datasheet for DMC961040R.pdf |
|
ROHM | Trans GP BJT PNP 20V 3A 4-Pin(3+Tab) MPT T R Download PDF datasheet for 2SB1424T100Q.pdf |
|
ROHM | Trans Digital BJT NPN 100mA 3-Pin EMT T R Download PDF datasheet for DTC143EETL.pdf |
|

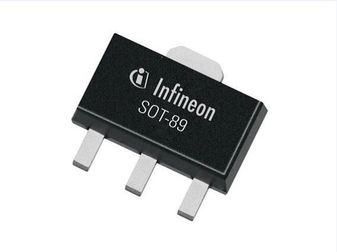

Infineon | Trans GP BJT NPN 80V 1A 4-Pin(3+Tab) SOT-89 T R Download PDF datasheet for BCX5610H6327XTSA1.pdf |
|
