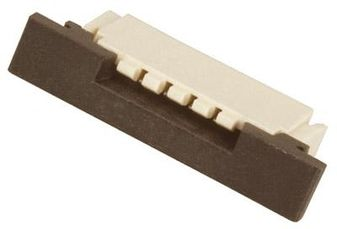

Please contact us for more photos of 0520451245
| Part Number | 0520451245 |
|---|---|
| Manufacturer | Molex |
| Quantity in stock | 868930 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn FFC FPC Connector SKT 12 POS 2.5mm Solder ST Thru-Hole Tray |
| Category | Connectors |
| Family | Connector FFC-FPC |
| ROHS Compliant | Yes |
| MSL Level | 0520451245 |
| Datasheet download |  0520451245.pdf |
| Part Number | 0520451245 |
|---|---|
| Product Dimensions | 18.4 x 5.1 x 8 mm |
| Pitch | 2.5 mm |
| Housing Color | Gray |
| Contact Material | Phosphor Bronze |
| Operating Temperature | -40 to 85 °C |
| Housing Material | Polyester |
| Termination Method | Solder |
| Body Orientation | Straight |
| Contact Gender | SKT |
| Mounting | Through Hole |
| Contact Plating | Tin |
| Lead Finish | Tin |
| Product Depth | 5.1 mm |
| Product Height | 8 mm |
| Product Length | 18.4 mm |
| Replacement Part Number | PART-0520451245 |
| Weight | Contact us |
| Country of Origin | - |
