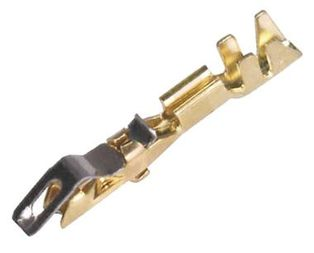

Please contact us for more photos of 172253-3012
| Part Number | 172253-3012 |
|---|---|
| Manufacturer | Molex |
| Quantity in stock | 347060 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Contact F Crimp ST Cable Mount Reel |
| Category | Connectors |
| Family | Connector Contacts |
| ROHS Compliant | Yes |
| MSL Level | 172253-3012 |
| Datasheet download |  172253-3012.pdf |
| Part Number | 172253-3012 |
|---|---|
| Body Orientation | Straight |
| Lead Finish | Tin Over Nickel |
| Termination Method | Crimp |
| Product Dimensions | 19.87 x 2.89 x 2.96 |
| Wire Size | 14 to 18 AWG |
| Shielded | No |
| Rad Hard | No |
| Max Processing Temp | 260 |
| Mounting | Cable Mount |
| Gender | F |
| Contact Type | Power |
| Connector Type | Connector Headers and PCB Receptacles |
| Contact Material | Copper Alloy |
| Series Name | 172253 |
| Plating Thickness | 0.762 µm |
| Contact Plating | Gold Over Nickel |
| Operating Temperature | -40 to 120 °C |
| Product Depth | 2.89 mm |
| Product Height | 2.96 mm |
| Product Length | 19.87 mm |
| Replacement Part Number | PART-172253-3012 |
| Weight | Contact us |
| Country of Origin | - |
