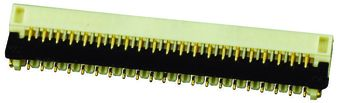

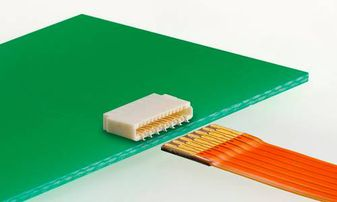

Please contact us for more photos of 503566-4100
| Part Number | 503566-4100 |
|---|---|
| Manufacturer | Molex |
| Quantity in stock | 862600 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn FPC Connector SKT 41 POS 0.3mm Solder RA SMD Embossed T R |
| Category | Connectors |
| Family | Connector FFC-FPC |
| ROHS Compliant | Yes |
| MSL Level | 503566-4100 |
| Datasheet download |  503566-4100.pdf |
| Part Number | 503566-4100 |
|---|---|
| Maximum Voltage Rating | 50 V |
| Contact Gender | SKT |
| Termination Method | Solder |
| Pin Count | 41 |
| Contact Material | Phosphor Bronze |
| Number of Rows | 1 |
| Contact Plating | Gold Over Nickel |
| Pitch | 0.3 mm |
| Mounting | Surface Mount |
| Rad Hard | No |
| Housing Color | Natural |
| Maximum Current Rating | 0.2/Contact A |
| Number of Contacts | 41 |
| Type | FPC Connector |
| Operating Temperature | -40 to 105 °C |
| Package Dimensions | 13.95 x 2.85 x 0.95 mm |
| Lead Finish | Gold Over Nickel |
| Body Orientation | Right Angle |
| Housing Material | Liquid Crystal Polymer |
| Product Depth | 2.85 mm |
| Product Height | 0.95 mm |
| Product Length | 13.95 mm |
| Replacement Part Number | PART-503566-4100 |
| Weight | Contact us |
| Country of Origin | - |
