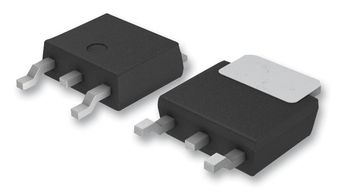

Please contact us for more photos of BUK7Y22-100EX
| Part Number | BUK7Y22-100EX |
|---|---|
| Manufacturer | Nexperia |
| Quantity in stock | 186700 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Trans MOSFET N-CH 100V 49A 5-Pin(4+Tab) LFPAK T R |
| Category | Discrete Semiconductor |
| Family | Transistor |
| ROHS Compliant | Yes |
| MSL Level | BUK7Y22-100EX |
| Datasheet download |  BUK7Y22-100EX.pdf |
| Part Number | BUK7Y22-100EX |
|---|---|
| Supplier Package | LFPAK |
| Maximum Continuous Drain Current | 49 A |
| Channel Type | N |
| Maximum Gate Source Voltage | 20 V |
| Operating Temperature | -55 to 175 °C |
| Product Dimensions | 5 x 4.1 x 1.1 mm |
| Maximum Drain Source Voltage | 100 V |
| Typical Fall Time | 20 ns |
| Typical Turn-Off Delay Time | 35 ns |
| Rad Hard | No |
| Channel Mode | Depletion |
| Mounting | Surface Mount |
| Pin Count | 5 |
| RDS-on | 22@10V mOhm |
| Typical Turn-On Delay Time | 10 ns |
| Typical Rise Time | 17 ns |
| Package | 5LFPAK |
| Replacement Part Number | PART-BUK7Y22-100EX |
| Weight | Contact us |
| Country of Origin | - |
