| Part Number | CSD19505KCS |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 684850 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Trans MOSFET N-CH 80V 150A 3-Pin TO-220 |
| Category | Discrete Semiconductor |
| Family | Transistor |
| ROHS Compliant | Yes |
| MSL Level | CSD19505KCS |
| Datasheet download |  CSD19505KCS.pdf |
| Part Number | CSD19505KCS |
|---|---|
| Typical Fall Time | 6 ns |
| Maximum Gate Source Voltage | ±20 V |
| Screening Level | Military |
| Supplier Package | TO-220 |
| Maximum Drain Source Voltage | 80 V |
| Typical Turn-Off Delay Time | 62 ns |
| Maximum Continuous Drain Current | 150 A |
| Channel Type | N |
| Product Dimensions | 10.67(Max) x 4.7(Max) x 9.25(Max) |
| RDS-on | 3.1@10V mOhm |
| Channel Mode | Enhancement |
| Operating Temperature | -55 to 175 °C |
| Mounting | Through Hole |
| Pin Count | 3 |
| Typical Rise Time | 16 ns |
| Typical Turn-On Delay Time | 31 ns |
| Rad Hard | No |
| Lead Finish | Tin |
| Package | 3TO-220 |
| Replacement Part Number | PART-CSD19505KCS |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Fairchild Semiconductor | Trans MOSFET N-CH 500V 13A 3-Pin(3+Tab) TO-220AB Rail Download PDF datasheet for FQP13N50C.pdf |
|
Infineon | Trans MOSFET N-CH 20V 30A 7-Pin Direct-FET MX T R Download PDF datasheet for IRF6619TRPbF.pdf |
|
Nexperia | Trans MOSFET N-CH 60V 0.35A 3-Pin TO-236AB T R Download PDF datasheet for 2N7002BK,215.pdf |
|
Infineon | Trans MOSFET N-CH 30V 27A 7-Pin Direct-FET MX T R Download PDF datasheet for IRF6724MTRPBF.pdf |
|
ROHM | MOSFET RK7002GZT116 - |
|

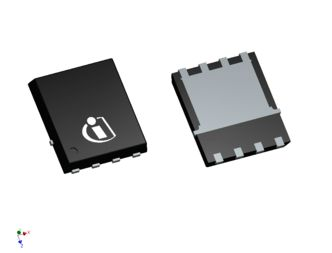

Infineon | Trans MOSFET N-CH 80V 18A 8-Pin TDSON EP Download PDF datasheet for BSC047N08NS3G.pdf |
|
STMicroelectronics | Trans MOSFET N-CH 500V 30A 3-Pin(3+Tab) TO-247 Tube Download PDF datasheet for STW26NM50.pdf |
|
Vishay | Trans MOSFET P-CH 250V 4.1A 3-Pin(3+Tab) TO-220 Full-Pak Download PDF datasheet for IRFI9634GPBF.pdf |
|

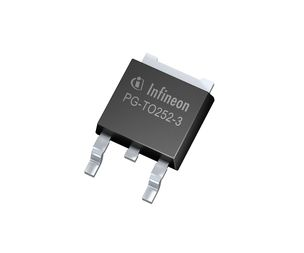

Infineon | Trans MOSFET N-CH 40V 50A 3-Pin TO-252 T R Download PDF datasheet for IPD50N04S4-08.pdf |
|
