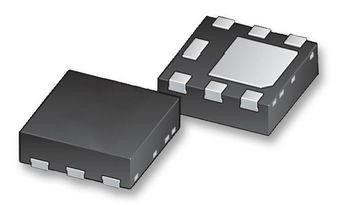

Please contact us for more photos of FDMC6679AZ
| Part Number | FDMC6679AZ |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Quantity in stock | 586540 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Trans MOSFET P-CH 30V 11.5A 8-Pin MLP EP T R |
| Category | Discrete Semiconductor |
| Family | Transistor |
| ROHS Compliant | Yes |
| MSL Level | FDMC6679AZ |
| Datasheet download |  FDMC6679AZ.pdf |
| Part Number | FDMC6679AZ |
|---|---|
| Maximum Gate Source Voltage | ±25 V |
| MSL Level | 1 |
| Channel Type | P |
| Channel Mode | Enhancement |
| Supplier Package | MLP EP |
| Product Dimensions | 3.3 x 3.3 x 0.75 mm |
| Rad Hard | No |
| Maximum Continuous Drain Current | 11.5 A |
| Maximum Drain Source Voltage | 30 V |
| Lead Finish | Gold |
| Typical Turn-On Delay Time | 12 ns |
| Operating Temperature | -55 to 150 °C |
| RDS-on | 10@10V mOhm |
| Pin Count | 8 |
| Max Processing Temp | 260 |
| Typical Turn-Off Delay Time | 63 ns |
| Typical Fall Time | 46 ns |
| Typical Rise Time | 14 ns |
| Mounting | Surface Mount |
| Package | 8MLP EP |
| Replacement Part Number | PART-FDMC6679AZ |
| Weight | Contact us |
| Country of Origin | - |
