PSMN4R5-30YLC,115 Nexperia

PSMN4R5-30YLC,115 Images

Please contact us for more photos of PSMN4R5-30YLC,115

Part Number PSMN4R5-30YLC,115
Manufacturer Nexperia
Quantity in stock 398860 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Trans MOSFET N-CH 30V 84A 5-Pin(4+Tab) LFPAK T R
Category Discrete Semiconductor
Family Transistor
ROHS Compliant Yes
MSL Level PSMN4R5-30YLC,115
Datasheet download PSMN4R5-30YLC,115.pdf
Request Quotation for PSMN4R5-30YLC,115

PSMN4R5-30YLC,115 Specifications

Part Number PSMN4R5-30YLC,115
Rad Hard No
Mounting Surface Mount
Pin Count 5
RDS-on 4.8@10V mOhm
Lead Finish Tin
MSL Level 1
Typical Turn-Off Delay Time 24.3 ns
Maximum Drain Source Voltage 30 V
Supplier Package LFPAK
Channel Type N
Maximum Gate Source Voltage 20 V
Channel Mode Enhancement
Max Processing Temp 260
Product Dimensions 5 x 4.1 x 1.1 mm
Typical Turn-On Delay Time 17.2 ns
Typical Fall Time 8.75 ns
Maximum Continuous Drain Current 84 A
Typical Rise Time 18.7 ns
Operating Temperature -55 to 175 °C
Package 5LFPAK
Replacement Part Number PART-PSMN4R5-30YLC,115
Weight Contact us
Country of Origin -

Related parts for PSMN4R5-30YLC,115

Image Part Number and Brand Brief Description and PDF Datasheet

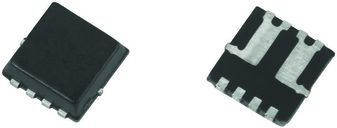

SI7214DN-T1-GE3
