Please contact us for more photos of NRSNA4I4J750TRF
| Part Number | NRSNA4I4J750TRF |
|---|---|
| Manufacturer | NIC Components |
| Quantity in stock | 303550 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film Array 75 Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 8-Pin 0804 Convex SMD Paper T R |
| Category | Resistor |
| Family | Resistor Networks and Arrays |
| ROHS Compliant | Yes |
| MSL Level | NRSNA4I4J750TRF |
| Datasheet download |  NRSNA4I4J750TRF.pdf |
| Part Number | NRSNA4I4J750TRF |
|---|---|
| Product Dimensions | 2 x 1 x 0.4 |
| Power Rating per Resistor | 1/16 W |
| Terminal Pitch | 0.5 mm |
| Lead Finish | Matte Tin Over Nickel |
| Max Processing Temp | 260 |
| Tolerance | 5 % |
| Case Style | Molded |
| Temperature Coefficient | ±200 ppm/°C |
| Rad Hard | No |
| Case Size | 0804 |
| Termination Style | Convex |
| Mounting | Surface Mount |
| Technology | Thick Film |
| MSL Level | 1 |
| Termination Material | Silver |
| Resistance Value | 75 Ohm |
| Supplier Package | 0804 |
| Pin Count | 8 |
| Operating Temperature | -55 to 125 °C |
| Product Depth | 1 mm |
| Product Height | 0.4 mm |
| Product Length | 2 mm |
| Replacement Part Number | PART-NRSNA4I4J750TRF |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Panasonic | Res Thick Film Array 220 Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 4-Pin 0404(2 X 0402) Convex SMD Punched Carrier T R Download PDF datasheet for EXB24V221JX.pdf |
|
Panasonic | Res Thick Film Array 22 Ohm 5% 1 10W \u00b1200ppm \u00b0C ISOL Molded 8-Pin 0502(4 X 0201) Flat SMD Punched Carrier T R Download PDF datasheet for EXB18V220JX.pdf |
|
Panasonic | Res Thick Film Array 2.7K Ohm 5% 1 10W \u00b1200ppm \u00b0C ISOL Molded 8-Pin 0502(4 X 0201) Flat SMD Punched Carrier T R Download PDF datasheet for EXB18V272JX.pdf |
|
ROHM | Res Thick Film NET 1K Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 8-Pin 1206 Convex SMD Paper T R Download PDF datasheet for MNR14E0APJ102.pdf |
|
Bourns | Res Thick Film NET 82K Ohm 2% 1.6W \u00b1100ppm \u00b0C ISOL Molded 8-Pin Pin Radial Thru-Hole Download PDF datasheet for 4308H-102-823LF.pdf |
|
Panasonic | Res Thick Film Array 75 Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 8-Pin 0804(4 X 0402) Convex SMD Punched Carrier T R Download PDF datasheet for EXB28V750JX.pdf |
|
Panasonic | Res Thick Film Array 100 Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 8-Pin 0804(4 X 0402) Concave SMD Punched Carrier T R Download PDF datasheet for EXBN8V101JX.pdf |
|
Vishay | Res Thick Film NET 3.9K Ohm 2% 1.6W \u00b1100ppm \u00b0C ISOL Molded 16-Pin DIP Pin Thru-Hole Tube Download PDF datasheet for M8340102K3901GAD04.pdf |
|

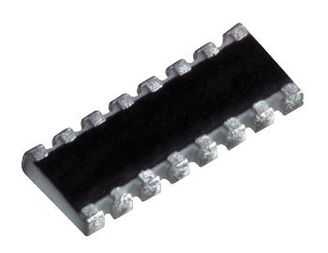

Panasonic | Res Thick Film Array 220 Ohm 5% 1 4W \u00b1200ppm \u00b0C ISOL Molded 16-Pin 1506(8 X 0402) Convex SMD Punched Carrier T R Download PDF datasheet for EXB2HV221JV.pdf |
|
