Please contact us for more photos of MPX5700GP1
| Part Number | MPX5700GP1 |
|---|---|
| Manufacturer | NXP |
| Quantity in stock | 886560 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Pressure Sensor 0.2V to 4.7V 0kPa to 700kPa Gage 6-Pin Case 867B-04 Tray |
| Category | Sensors & Transducers |
| Family | Pressure Sensor |
| ROHS Compliant | Yes |
| MSL Level | MPX5700GP1 |
| Datasheet download |  MPX5700GP1.pdf |
| Part Number | MPX5700GP1 |
|---|---|
| Product Dimensions | 29.85 x 8.26 x 29.34 |
| Lead Finish | Gold Over Nickel Palladium |
| Supplier Package | Case 867B-04 |
| Operating Pressure Range | 0 to 700 kPa |
| Mounting | Through Hole |
| Output Voltage | 0.2 to 4.7 V |
| Max Processing Temp | 220 |
| Device Pressure Type | Gage |
| Rad Hard | No |
| Overload Pressure | 2800 kPa |
| Accuracy | ±2.5 % |
| Operating Supply Voltage | 5 V |
| Pin Count | 6 |
| Operating Temperature | -40 to 125 °C |
| Package | 6Case 867B-04 |
| Replacement Part Number | PART-MPX5700GP1 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
NXP | Pressure Sensor 1V to 4.9V 0kPa to 3.92kPa Gage 8-Pin SMT T R Download PDF datasheet for MPXV5004GPT1.pdf |
|
NXP | Pressure Sensor 0kPa to 50kPa Gage 5-Pin Case 1320A-02 Rail Download PDF datasheet for MPXM2053GS.pdf |
|
NXP | Pressure Sensor 0.2V to 4.8V 15kPa to 115kPa Absolute 8-Pin SOP Rail Download PDF datasheet for MPXA4115A6U.pdf |
|
NXP | Pressure Sensor 0.5V to 4.5V -7kPa to 7kPa Differential 8-Pin SMT Tray Download PDF datasheet for MPXV7007DP.pdf |
|
NXP | Pressure Sensor 0kPa to 50kPa Differential 4-Pin Case 344-15 Tray Download PDF datasheet for MPX2050D.pdf |
|
NXP | Pressure Sensor 0.2V to 4.8V 15kPa to 115kPa Absolute 8-Pin SSOP T R Download PDF datasheet for MPXH6115AC6T1.pdf |
|
NXP | Pressure Sensor 0.1V to 3.1V 0kPa to 10kPa Differential 8-Pin Case 1351-01 Tray Download PDF datasheet for MP3V5010DP.pdf |
|

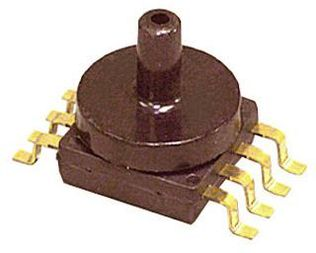

NXP | Pressure Sensor 0.2V to 4.7V 0kPa to 10kPa Gage 8-Pin SMT T R Download PDF datasheet for MPXV5010GC6T1.pdf |
|
