| Part Number | AXE870124 |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 117440 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Board To Board HDR 70 POS 0.35mm Solder ST SMD Emboss T R |
| Category | Connectors |
| Family | Connector Headers and PCB Receptacles |
| ROHS Compliant | Yes |
| MSL Level | AXE870124 |
| Datasheet download |  AXE870124.pdf |
| Part Number | AXE870124 |
|---|---|
| Operating Temperature | -55 to 85 °C |
| Maximum Voltage Rating | 60|60 Vdc|Vac |
| Termination Method | Solder |
| Contact Plating | Gold Over Nickel |
| Package Dimensions | 13.9 x 1.42 x 0.65 mm |
| Maximum Contact Resistance | 100 MOhm |
| Number of Rows | 2 |
| Number of Contacts | 70 |
| Pin Count | 70 |
| Rad Hard | No |
| Mounting | Surface Mount |
| Maximum Current Rating | 0.25/Contact A |
| Gender | HDR |
| Maximum Processing Temperature | 260 °C |
| Type | Board to Board |
| Pitch | 0.35 mm |
| Contact Material | Copper Alloy |
| Body Orientation | Straight |
| Lead Finish | Gold Over Nickel |
| Housing Material | Liquid Crystal Polymer |
| Product Depth | 1.42 mm |
| Product Height | 0.65 mm |
| Product Length | 13.9 mm |
| Replacement Part Number | PART-AXE870124 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Molex | Conn Shrouded Header HDR 32 POS 2mm Solder RA Thru-Hole Tube Download PDF datasheet for 0878333220.pdf |
|

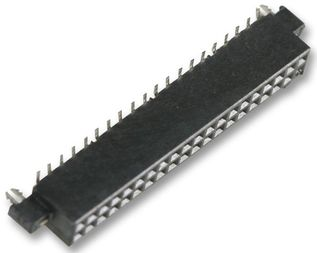

TE Connectivity | Conn Socket Strip RCP 30 POS 1.27mm Solder ST SMD Tube Download PDF datasheet for 5-104652-3.pdf |
|
