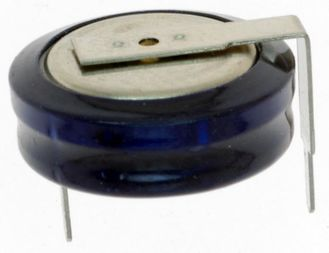

Please contact us for more photos of EECS5R5H105
| Part Number | EECS5R5H105 |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 103970 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap 1F 5.5V -20% to 80% 1000 hr (20 X 19 X 6mm) Radial Stacked Coin 20mm 70\u00b0C Tray |
| Category | Capacitors |
| Family | Capacitor Electric Double Layer |
| ROHS Compliant | Yes |
| MSL Level | EECS5R5H105 |
| Datasheet download |  EECS5R5H105.pdf |
| Part Number | EECS5R5H105 |
|---|---|
| Operating Temperature | -25 to 70 °C |
| Product Dimensions | 20 x 19 x 6 mm |
| Lead Diameter | 1 mm |
| Max Processing Temp | 250 to 260 |
| Mounting | Through Hole |
| Lead Finish | Tin |
| Capacitance Value | 1 F |
| Package/Case | 20 X 19 X 6 |
| Seated Plane Height | 6 mm |
| Tolerance | -20 to 80 % |
| Voltage(DC) | 5.5 V |
| Rad Hard | No |
| Termination Style | Radial |
| Lifetime | 1000 hr |
| Construction | Stacked Coin |
| Lead Pitch For Radial | 20 mm |
| Product Depth | 19 mm |
| Product Height | 6 mm |
| Product Length | 20 mm |
| Replacement Part Number | PART-EECS5R5H105 |
| Weight | Contact us |
| Country of Origin | - |
