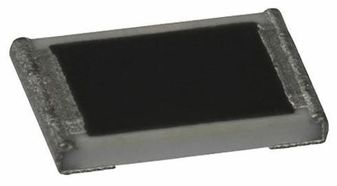

Please contact us for more photos of ERJ-6ENF1003V
| Part Number | ERJ-6ENF1003V |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 176330 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film 0805 100K Ohm 1% 1 8W \u00b1100ppm \u00b0C Molded SMD Punched Carrier T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | ERJ-6ENF1003V |
| Datasheet download |  ERJ-6ENF1003V.pdf |
| Part Number | ERJ-6ENF1003V |
|---|---|
| Product Dimensions | 2 x 1.25 x 0.6 mm |
| Type | Thick Film |
| Max Processing Temp | 260 |
| Rad Hard | No |
| Case Style | Molded |
| Tolerance | 1 % |
| Resistance Value | 100 kOhm |
| Mounting | Surface Mount |
| Power Rating | 0.125 W |
| Case Size | 0805 |
| Operating Temperature | -55 to 155 °C |
| Lead Finish | Tin |
| Package Type | SMD |
| Temperature Coefficient | ±100 ppm/°C |
| Product Depth | 1.25 mm |
| Product Height | 0.6 mm |
| Product Length | 2 mm |
| Product Weight | 4 mg |
| Replacement Part Number | PART-ERJ-6ENF1003V |
| Weight | Contact us |
| Country of Origin | - |
