ERJU01J472C Panasonic

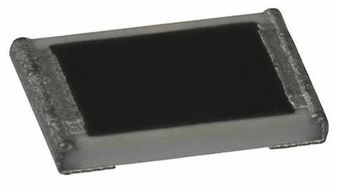

ERJU01J472C Images

Please contact us for more photos of ERJU01J472C

Part Number ERJU01J472C
Manufacturer Panasonic
Quantity in stock 368840 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Res Thick Film 0201 4.7K Ohm 5% 1 20W \u00b1200ppm \u00b0C Molded SMD Pressed Paper T R
Category Resistor
Family Resistor Fixed Single-Surface Mount
ROHS Compliant Yes
MSL Level ERJU01J472C
Datasheet download ERJU01J472C.pdf
Request Quotation for ERJU01J472C

ERJU01J472C Specifications

Part Number ERJU01J472C
Mounting Surface Mount
Operating Temperature -55 to 155 °C
Resistance Value 4.7 kOhm
Power Rating 0.05 W
Case Size 0201
Product Dimensions 0.6 x 0.3 x 0.23
Lead Finish Tin
Supplier Package 0201
Temperature Coefficient ±200 ppm/°C
Pin Count 2
Case Style Molded
Rad Hard No
Tolerance 5 %
Max Processing Temp 260
Termination Style Wraparound
Product Depth 0.3 mm
Product Height 0.23 mm
Product Length 0.6 mm
Product Weight 0.15 mg
Replacement Part Number PART-ERJU01J472C
Weight Contact us
Country of Origin -
