LMX2485ESQ NOPB Texas Instruments

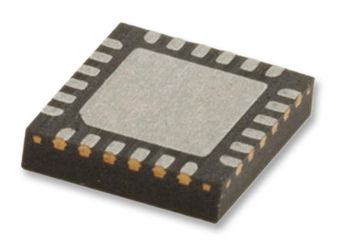

LMX2485ESQ NOPB Images

Please contact us for more photos of LMX2485ESQ NOPB

Part Number	LMX2485ESQ NOPB
Manufacturer	Texas Instruments
Quantity in stock	674300 Pieces
Market Price	-
Our Better Price	Send by email: [email protected]
Delivery Time	1 day (can ship today)
Description	PLL Frequency Synthesizer Dual 50MHz to 3000MHz 24-Pin LLP EP T R
Category	RF & Microwave
Family	RF ICs
ROHS Compliant	Yes
MSL Level	LMX2485ESQ NOPB
Datasheet download	LMX2485ESQ NOPB.pdf

Request Quotation for LMX2485ESQ NOPB

LMX2485ESQ NOPB Specifications

Part Number	LMX2485ESQ NOPB
Mounting	Surface Mount
Pin Count	24
Product Dimensions	4 x 4 x 0.8 mm
Operating Supply Voltage	3 V
Maximum Input Frequency	3000 MHz
Lead Finish	Tin
Type	PLL Frequency Synthesizer
Number of Elements per Chip	2
Minimum Input Frequency	50 MHz
MSL Level	3
Supplier Package	LLP EP
Rad Hard	No
Max Processing Temp	260
Operating Temperature	-40 to 85 °C
Package	24LLP EP
Replacement Part Number	PART-LMX2485ESQ NOPB
Weight	Contact us
Country of Origin	-
