Part Number | JP026821UNL |
---|---|
Manufacturer | Pulse |
Quantity in stock | 642280 Pieces |
Market Price | - |
Our Better Price | Send by email: [email protected] |
Delivery Time | 1 day (can ship today) |
Description | Conn RJ-45 Integrated Magnetics F 8 POS 2.03mm Solder RA Thru-Hole 10 Terminal 1 Port Cat 5 Cat 6 |
Category | Connectors |
Family | Connector Telephone and Telecom |
ROHS Compliant | Yes |
MSL Level | JP026821UNL |
Datasheet download | ![]() |
Part Number | JP026821UNL |
---|---|
Contact Plating | Gold Over Nickel |
Number of Terminals | 10 |
Housing Material | Thermoplastic |
Contact Material | Phosphor Bronze |
Rad Hard | No |
Gender | F |
Max Processing Temp | 260 |
Operating Temperature | 0 to 70 °C |
Pitch | 2.03 mm |
Product Dimensions | 16.66 x 25.37 x 13.49 mm |
Termination Method | Solder |
Lead Finish | Matte Tin |
Number of Contacts | 8 |
Number of Ports | 1 |
Mounting | Through Hole |
MSL Level | 1 to 5 |
Type | RJ-45 Integrated Magnetics |
Body Orientation | Right Angle |
Product Depth | 25.37 mm |
Product Height | 13.49 mm |
Product Length | 16.66 mm |
Replacement Part Number | PART-JP026821UNL |
Weight | Contact us |
Country of Origin | - |
Image | Part Number and Brand | Brief Description and PDF Datasheet |
---|---|---|
Molex | Conn QSFP F 228 POS 0.8mm Press Fit RA Thru-Hole 228 Terminal 6 Port Tray Download PDF datasheet for 768700004.pdf |
|
TE Connectivity | Conn RJ-14 F 6 POS 2.54mm Solder ST Thru-Hole 6 Terminal 1 Port Tray Cat 3 Download PDF datasheet for 5520258-3.pdf |
|
Molex | Conn SFP RCP 240 POS 0.8mm Solder RA Thru-Hole 240 Terminal 12 Port Tray Download PDF datasheet for 0760485002.pdf |
|
TE Connectivity | Conn RJ-45 F 8 POS 2.54mm Solder ST Thru-Hole 8 Terminal 1 Port Tray Cat 3 Download PDF datasheet for 5557730-1.pdf |
|

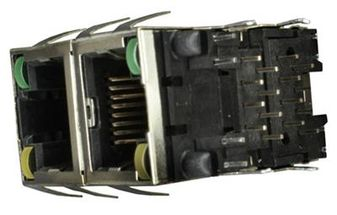

Amphenol | Conn RJ-45 F 16 POS 2.54mm Solder RA Thru-Hole 24 Terminal 2 Port Cat 5 Download PDF datasheet for RJSAE-5384-02.pdf |
|
