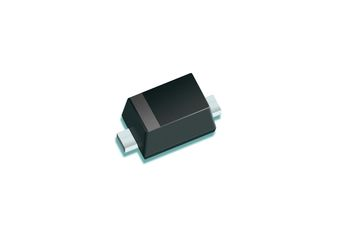

Please contact us for more photos of BAS 3010A-03W E6327
| Part Number | BAS 3010A-03W E6327 |
|---|---|
| Manufacturer | Infineon |
| Quantity in stock | 351700 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Schottky 30V 1A 2-Pin SOD-323 T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | BAS 3010A-03W E6327 |
| Datasheet download |  BAS 3010A-03W E6327.pdf |
| Part Number | BAS 3010A-03W E6327 |
|---|---|
| Pin Count | 2 |
| Peak Non-Repetitive Surge Current | 10 A |
| Rad Hard | No |
| Supplier Package | SOD-323 |
| Type | Schottky Diode |
| Product Dimensions | 1.7 x 1.25 x 1.05 mm |
| Lead Finish | Matte Tin |
| Peak Reverse Current | 200 uA |
| Peak Reverse Repetitive Voltage | 30 V |
| Operating Temperature | -65 to 125 °C |
| Mounting | Surface Mount |
| Max Processing Temp | 260 |
| MSL Level | 1 |
| Configuration | Single |
| Peak Forward Voltage | 0.47 V |
| Peak Average Forward Current | 1 A |
| Package | 2SOD-323 |
| Replacement Part Number | PART-BAS 3010A-03W E6327 |
| Weight | Contact us |
| Country of Origin | - |
