BAT42W-7-F Diodes Incorporated

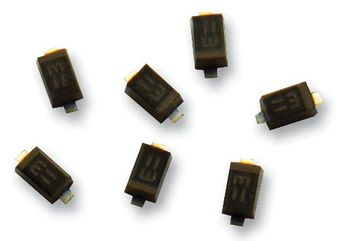

BAT42W-7-F Images

Please contact us for more photos of BAT42W-7-F

Part Number BAT42W-7-F
Manufacturer Diodes Incorporated
Quantity in stock 499540 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Diode Schottky 30V 0.2A 2-Pin SOD-123 T R
Category Discrete Semiconductor
Family Diode
ROHS Compliant Yes
MSL Level BAT42W-7-F
Datasheet download BAT42W-7-F.pdf
Request Quotation for BAT42W-7-F

BAT42W-7-F Specifications

Part Number BAT42W-7-F
Peak Reverse Recovery Time 5 ns
Lead Finish Matte Tin
Peak Non-Repetitive Surge Current 4 A
Mounting Surface Mount
Peak Reverse Current 0.5@25V uA
Operating Temperature -55 to 125 °C
Supplier Package SOD-123
Peak Forward Voltage 1 V
Product Dimensions 2.85 x 1.7 x 1.25 mm
MSL Level 1
Peak Reverse Repetitive Voltage 30 V
Pin Count 2
Type Schottky Diode
Rad Hard No
Configuration Single
Max Processing Temp 260
Peak Average Forward Current 0.2 A
Package 2SOD-123
Replacement Part Number PART-BAT42W-7-F
Weight Contact us
Country of Origin -
