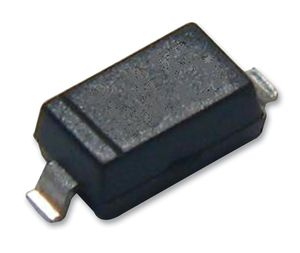

Please contact us for more photos of BAT43W-7-F
| Part Number | BAT43W-7-F |
|---|---|
| Manufacturer | Diodes Incorporated |
| Quantity in stock | 811590 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Schottky 30V 0.2A 2-Pin SOD-123 T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | BAT43W-7-F |
| Datasheet download |  BAT43W-7-F.pdf |
| Part Number | BAT43W-7-F |
|---|---|
| Peak Average Forward Current | 0.2 A |
| Peak Non-Repetitive Surge Current | 4 A |
| Peak Reverse Repetitive Voltage | 30 V |
| Max Processing Temp | 260 |
| Pin Count | 2 |
| Configuration | Single |
| Supplier Package | SOD-123 |
| Type | Schottky Diode |
| Rad Hard | No |
| Peak Reverse Recovery Time | 5 ns |
| Lead Finish | Matte Tin |
| MSL Level | 1 |
| Product Dimensions | 2.85 x 1.7 x 1.25 mm |
| Operating Temperature | -55 to 125 °C |
| Peak Forward Voltage | 1 V |
| Peak Reverse Current | 0.5@25V uA |
| Mounting | Surface Mount |
| Package | 2SOD-123 |
| Replacement Part Number | PART-BAT43W-7-F |
| Weight | Contact us |
| Country of Origin | - |
