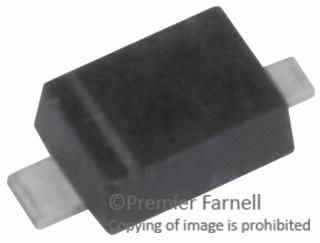

Please contact us for more photos of BAW56T116
| Part Number | BAW56T116 |
|---|---|
| Manufacturer | ROHM |
| Quantity in stock | 450870 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Switching 85V 0.45A 3-Pin SSD T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | BAW56T116 |
| Datasheet download |  BAW56T116.pdf |
| Part Number | BAW56T116 |
|---|---|
| Supplier Package | SSD |
| Peak Reverse Repetitive Voltage | 85 V |
| Peak Average Forward Current | 0.45 A |
| Rad Hard | No |
| Operating Temperature | -55 to 150 °C |
| Max Processing Temp | 260 |
| Product Dimensions | 2.9 x 1.3 x 0.95 mm |
| Configuration | Dual Common Anode |
| Peak Reverse Recovery Time | 4 ns |
| Peak Non-Repetitive Surge Current | 4 A |
| Peak Forward Voltage | [email protected] V |
| Lead Finish | Tin|Tin/Copper |
| Peak Reverse Current | 1@75V uA |
| Type | Switching Diode |
| Pin Count | 3 |
| Mounting | Surface Mount |
| Package | 3SSD |
| Replacement Part Number | PART-BAW56T116 |
| Weight | Contact us |
| Country of Origin | - |
