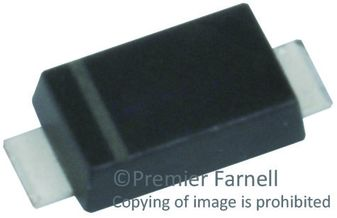

Please contact us for more photos of PNS40010ER,115
| Part Number | PNS40010ER,115 |
|---|---|
| Manufacturer | Nexperia |
| Quantity in stock | 120770 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Switching 400V 1.4A 2-Pin SOD-123W T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | PNS40010ER,115 |
| Datasheet download |  PNS40010ER,115.pdf |
| Part Number | PNS40010ER,115 |
|---|---|
| Pin Count | 2 |
| Peak Reverse Recovery Time | 1800 ns |
| Product Dimensions | 2.8 x 1.9 mm |
| Peak Non-Repetitive Surge Current | 32 A |
| Peak Reverse Repetitive Voltage | 400 V |
| Rad Hard | No |
| Mounting | Surface Mount |
| Peak Reverse Current | 1 uA |
| Supplier Package | SOD-123W |
| Peak Average Forward Current | 1.4 A |
| Configuration | Single |
| Operating Temperature | -55 to 175 °C |
| Peak Forward Voltage | 1.1@1A V |
| Type | Switching Diode |
| Package | 2SOD-123W |
| Replacement Part Number | PART-PNS40010ER,115 |
| Weight | Contact us |
| Country of Origin | - |
