Please contact us for more photos of S1J-E3 5AT
| Part Number | S1J-E3 5AT |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 130760 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Switching 600V 1A 2-Pin SMA T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | S1J-E3 5AT |
| Datasheet download |  S1J-E3 5AT.pdf |
| Part Number | S1J-E3 5AT |
|---|---|
| Supplier Package | SMA |
| Product Dimensions | 4.6 x 2.9 mm |
| Peak Reverse Current | 1 uA |
| Peak Forward Voltage | 1.1 V |
| Max Processing Temp | 260 |
| Peak Reverse Recovery Time | 1800 ns |
| Peak Non-Repetitive Surge Current | 40 A |
| Pin Count | 2 |
| Configuration | Single |
| Lead Finish | Matte Tin |
| Rad Hard | No |
| Mounting | Surface Mount |
| Type | Switching Diode |
| Operating Temperature | -55 to 150 °C |
| Peak Reverse Repetitive Voltage | 600 V |
| Peak Average Forward Current | 1 A |
| MSL Level | 1 |
| Package | 2SMA |
| Replacement Part Number | PART-S1J-E3 5AT |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Nexperia | Diode Zener Single 12V 2% 550mW 2-Pin SOD-323F T R Download PDF datasheet for BZX84J-B12,115.pdf |
|

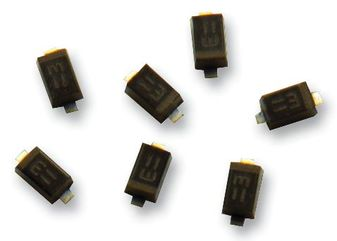

ROHM | Diode Zener Single 16.18V 2% 150mW 2-Pin EMD T R Download PDF datasheet for EDZTE6116B.pdf |
|
Vishay | Diode Zener Single 3.3V 6% 500mW 2-Pin Quadro MELF SOD-80 T R Download PDF datasheet for BZT55C3V3-GS08.pdf |
|
Vishay | Diode Zener Single 15V 5% 1.3W 2-Pin DO-41 T R Download PDF datasheet for 1N4744A-TR.pdf |
|
ON Semiconductor | Diode Switching 200V 3A 2-Pin Case 267-05 T R Download PDF datasheet for 1N5402RLG.pdf |
|
Fairchild Semiconductor | Diode Small Signal Switching 100V 0.2A 2-Pin SOD-123 T R Download PDF datasheet for MMSD914.pdf |
|
Diodes Incorporated | Diode Rectifier Bridge Single 400V 6A 4-Pin Case GBU Tube Download PDF datasheet for GBU604.pdf |
|
WeEn Semiconductors | Diode Switching 600V 8A 2-Pin(2+Tab) TO-220F Rail Download PDF datasheet for BYC58X-600,127.pdf |
|

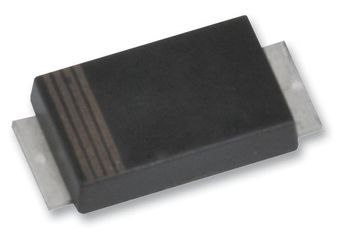

Panasonic | ZENER DIODE SINGLE, ESD PROTECTION, VZ:12V, PT:2W Download PDF datasheet for DZ2412000L.pdf |
|
