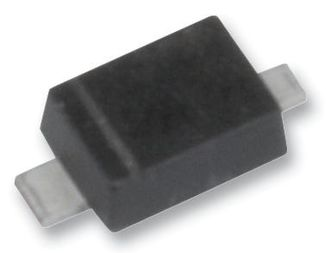

Please contact us for more photos of STTH2R02AFY
| Part Number | STTH2R02AFY |
|---|---|
| Manufacturer | STMicroelectronics |
| Quantity in stock | 380140 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Ultra Fast Rectifier 200V 2A 2-Pin SOD-128 FLAT T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | STTH2R02AFY |
| Datasheet download |  STTH2R02AFY.pdf |
| Part Number | STTH2R02AFY |
|---|---|
| Configuration | Single |
| Rad Hard | No |
| Supplier Package | SOD-128 Flat |
| Peak Reverse Repetitive Voltage | 200 V |
| Operating Temperature | -40 to 175 °C |
| Screening Level | Automotive |
| MSL Level | 1 |
| Mounting | Surface Mount |
| Peak Forward Voltage | 1.02 V |
| Peak Reverse Current | 0.8 uA |
| Type | Ultra Fast Rectifier |
| Peak Average Forward Current | 2@Tl=129C A |
| Pin Count | 2 |
| Max Processing Temp | 260 |
| Peak Non-Repetitive Surge Current | 50 A |
| Product Dimensions | 3.9(Max) x 2.5(Max) x 1.03(Max) |
| Lead Finish | Matte Tin |
| Peak Reverse Recovery Time | 20 ns |
| Package | 2SOD-128 Flat |
| Replacement Part Number | PART-STTH2R02AFY |
| Weight | Contact us |
| Country of Origin | - |
