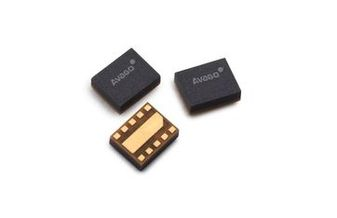

Please contact us for more photos of ALM-32220-BLKG
| Part Number | ALM-32220-BLKG |
|---|---|
| Manufacturer | Broadcom |
| Quantity in stock | 768250 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | RF Amp Module Single GP Amp 2.7GHz 6-Pin MCOB Bulk |
| Category | RF & Microwave |
| Family | Amplifiers |
| ROHS Compliant | Yes |
| MSL Level | ALM-32220-BLKG |
| Datasheet download |  ALM-32220-BLKG.pdf |
| Part Number | ALM-32220-BLKG |
|---|---|
| Maximum Power Dissipation | 8250 mW |
| Typical Output Power | 34.4@2000MHz dBm |
| Mounting | Surface Mount |
| Typical Output Intercept Point | 50@2000MHz dBm |
| Pin Count | 6 |
| Typical Power Gain | 14.8@2000MHz dB |
| Supplier Package | MCOB |
| Type | General Purpose Amplifier |
| MSL Level | 3 |
| Operating Temperature | N/A to 150 °C |
| Rad Hard | No |
| Max Processing Temp | 260 |
| Product Dimensions | 10 x 7 x 1.05 mm |
| Maximum Supply Current | 1500 mA |
| Maximum Reverse Isolation | 30@2000 dB |
| Maximum Input Return Loss | 9@2000 dB |
| Maximum Output Return Loss | 9@2000 dB |
| Package | 6MCOB |
| Replacement Part Number | PART-ALM-32220-BLKG |
| Weight | Contact us |
| Country of Origin | - |
