Please contact us for more photos of TCP1A225M8R
| Part Number | TCP1A225M8R |
|---|---|
| Manufacturer | ROHM |
| Quantity in stock | 655670 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Tant Solid 2.2uF 10V P CASE 20% (2 X 1.25 X 1.2mm) SMD 2012-12 125\u00b0C Plastic T R |
| Category | Capacitors |
| Family | Capacitor Tantalum Solid SMT |
| ROHS Compliant | Yes |
| MSL Level | TCP1A225M8R |
| Datasheet download |  TCP1A225M8R.pdf |
| Part Number | TCP1A225M8R |
|---|---|
| Polarity | Polar |
| Tolerance | 20 % |
| Case Size | 2012-12 |
| Rad Hard | No |
| Case Style | Molded |
| Case Code | P |
| Dissipation Factor | 20 % |
| Package/Case | 2012-12,P |
| Operating Temperature | -55 to 125 °C |
| Voltage(DC) | 10 V |
| Mounting | Surface Mount |
| Military Standard | |
| Failure Rate | |
| Capacitance Value | 2.2 uF |
| Product Dimensions | 2 x 1.25 x 1.2 mm |
| Construction | Flat |
| Leakage Current | 0.5 uA |
| Equivalent Series Resistance | 15 Ohm |
| Product Depth | 1.25 mm |
| Product Height | 1.2(Max) mm |
| Product Length | 2 mm |
| Replacement Part Number | PART-TCP1A225M8R |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
AVX | Cap Tant Solid 3.3uF 35V C CASE 20% (6 X 3.2 X 2.6mm) SMD 6032-28 2.5 Ohm 125\u00b0C T R Download PDF datasheet for TAJC335M035RNJ.pdf |
|

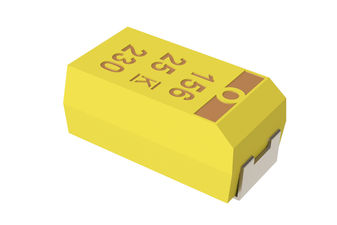

KEMET | Cap Tant Solid 47uF 10V B CASE 20% (3.5 X 2.8 X 1.9mm) SMD 3528-21 0.65 Ohm 125\u00b0C T R Download PDF datasheet for T494B476M010AT.pdf |
|
