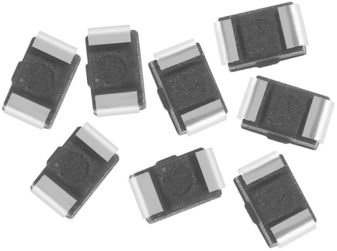

Please contact us for more photos of CDRH2D14NP-4R7NC
| Part Number | CDRH2D14NP-4R7NC |
|---|---|
| Manufacturer | Sumida |
| Quantity in stock | 471210 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Ind Power Shielded Wirewound 4.7uH 30% 100KHz 1A 1212 Carrier T R |
| Category | Inductor |
| Family | Inductor Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | CDRH2D14NP-4R7NC |
| Datasheet download |  CDRH2D14NP-4R7NC.pdf |
| Part Number | CDRH2D14NP-4R7NC |
|---|---|
| Protection Style | Shielded |
| Package/Case | 1212 |
| Tolerance | 30 % |
| Operating Temperature | -40 to 100 °C |
| Test Frequency | 100 kHz |
| Rad Hard | No |
| Product Dimensions | 3.2 x 3.2 x 1.55 mm |
| Technology | Wirewound |
| Max Processing Temp | 245 |
| Product Depth | 3.2 mm |
| Product Height | 1.55 mm |
| Product Length | 3.2 mm |
| Replacement Part Number | PART-CDRH2D14NP-4R7NC |
| Weight | Contact us |
| Country of Origin | - |
