Please contact us for more photos of EVQ9P105M
| Part Number | EVQ9P105M |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 537620 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Switch Tactile N.O. SPST Round Button J-Bend 0.05A 12VDC 3.5N SMD Embossed Tape |
| Category | Switches and Relays |
| Family | Switches |
| ROHS Compliant | Yes |
| MSL Level | EVQ9P105M |
| Datasheet download |  EVQ9P105M.pdf |
| Part Number | EVQ9P105M |
|---|---|
| Mounting | Surface Mount |
| Terminal Type | J-Bend |
| Operating Force | 3.5 N |
| Lead Finish | Gold|Silver |
| Pole Throw Configuration | SPST |
| Product Dimensions | 6 x 7.4 x 5 mm |
| Type | Light Touch |
| Switch Configuration | N.O. |
| Maximum Current Rating | 0.05@12VDC A |
| Maximum DC Voltage Rating | 12 V |
| Actuator Style | Round Button |
| Max Processing Temp | 260 |
| Operating Temperature | -40 to 85 °C |
| Rad Hard | No |
| Replacement Part Number | PART-EVQ9P105M |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Bourns | Switch Tactile N.O. SPST Round Button J-Hook 0.1A 16VAC 16VDC 100000Cycle 2.94N SMD Embossed T R Download PDF datasheet for 7914J-1-000E.pdf |
|
CITIZEN ELECTRONICS CO | Switch Tactile N.O. DPDT Round Button Solder 0.02A 12VDC 100000Cycles 2.84N SMD T R Download PDF datasheet for LS55D24D-T.pdf |
|
C&K | Switch Snap Action N.O. N.C. SPDT Simulated Roller Lever PC Pins 0.01A 12VDC 1.57N Thru-Hole Download PDF datasheet for ZMSH00130T11PSC.pdf |
|
C&K | Switch Push Button OFF Mom SPST Round Plunger 20VAC 20VDC 0.4VA Momentary Contact PC Pins Thru-Hole Download PDF datasheet for EP11S1D1CBE.pdf |
|

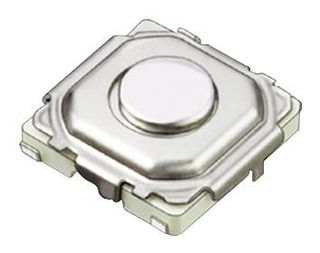

Panasonic | Switch Tactile N.O. SPST Round Button J-Bend 0.02A 15VDC 1.6N SMD Embossed Tape Download PDF datasheet for EVQPLHA15.pdf |
|
