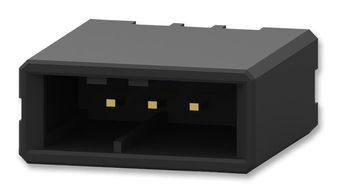

Please contact us for more photos of 1-770969-1
| Part Number | 1-770969-1 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 322210 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Power HDR 6 POS 4.14mm Solder RA Thru-Hole 6 Terminal 1 Port |
| Category | Connectors |
| Family | Connector Power |
| ROHS Compliant | Yes |
| MSL Level | 1-770969-1 |
| Datasheet download |  1-770969-1.pdf |
| Part Number | 1-770969-1 |
|---|---|
| Termination Method | Solder |
| Lead Finish | Matte Tin |
| Product Dimensions | 14 x 11.86 mm |
| Housing Material | Nylon |
| Body Orientation | Right Angle |
| Mounting | Through Hole |
| Contact Material | Brass |
| Max Processing Temp | 240|260|265 |
| Gender | HDR |
| Family Name | Micro MATE-N-LOK Wire-Applied Connectors |
| Rad Hard | No |
| Pitch | 4.14 mm |
| Contact Plating | Gold Over Nickel |
| Product Height | 11.86 mm |
| Product Length | 14 mm |
| Replacement Part Number | PART-1-770969-1 |
| Weight | Contact us |
| Country of Origin | - |
