Please contact us for more photos of 1217264-1
| Part Number | 1217264-1 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 263180 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | RCPT 090 CLSTR PIN 22-14 TPPHBZ |
| Category | Connectors |
| Family | Connector Terminals |
| ROHS Compliant | Yes |
| MSL Level | 1217264-1 |
| Datasheet download |  1217264-1.pdf |
| Part Number | 1217264-1 |
|---|---|
| Rad Hard | No |
| Lead Free | Yes |
| Packaging | Strip |
| Body Orientation | Straight |
| Shielded | No |
| Family | 1217264 |
| Contact Plating | Tin |
| Termination Method | Crimp |
| Connector Type | Connector Headers and PCB Receptacles |
| Family Name | Cluster Blocks |
| Mounting | Cable Mount |
| Contact Type | Signal |
| Contact Material | Phosphor Bronze |
| Gender | RCP |
| Product Depth | 4.7 mm |
| Product Height | 5.41 mm |
| Product Length | 17.02 mm |
| Replacement Part Number | PART-1217264-1 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
TE Connectivity | Quick Disconnect Terminal 16-20AWG RCP M 15.62mm 4.77mm Tin Strip Download PDF datasheet for 62026-1.pdf |
|
TE Connectivity | Quick Disconnect Terminal 10-12AWG RCP 20.8mm 10.05mm Pre-Tin Strip Download PDF datasheet for 175178-1.pdf |
|
TE Connectivity | Ring Tongue Terminal 13-17AWG 24.7mm 13.9mm Tin Strip Download PDF datasheet for 160789-2.pdf |
|
Molex | Ring Tongue Terminal 18-22AWG 20.5mm 6.7mm Tin Loose Piece Download PDF datasheet for 0190730038.pdf |
|
TE Connectivity | Receptacle Terminal 18-22AWG RCP 13.97mm 3.94mm Tin Reverse Reel Download PDF datasheet for 61291-1.pdf |
|
Molex | Ring Tongue Terminal 18-22AWG 18mm 6mm Tin Loose Piece Download PDF datasheet for 190700007.pdf |
|
TE Connectivity | Crimp Terminal 17-18.5AWG F 6mm 2.7mm Tin Strip Download PDF datasheet for 926933-2.pdf |
|

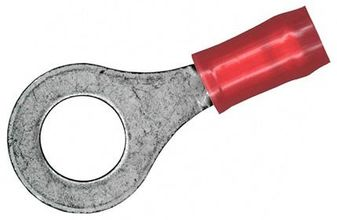

TE Connectivity | Ring Tongue Terminal 16-22AWG 27.38mm 11.91mm Tin Tape Mounted Download PDF datasheet for 2-31894-2.pdf |
|

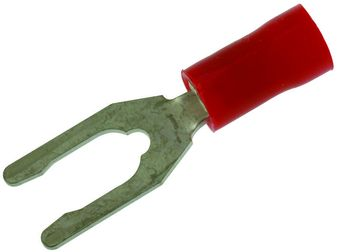

TE Connectivity | Spring Spade Terminal 16-22AWG 25.17mm 7.14mm Tin Loose Piece Download PDF datasheet for 52454.pdf |
|
TE Connectivity | Quick Disconnect Terminal 14-18AWG RCP 19.05mm 7.62mm Tin Strip on Reel Download PDF datasheet for 42400-2.pdf |
