Please contact us for more photos of 1376135-1
| Part Number | 1376135-1 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 102190 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Power M 3 POS 2.5mm Solder RA Thru-Hole 3 Terminal 1 Port Tube |
| Category | Connectors |
| Family | Connector Power |
| ROHS Compliant | Yes |
| MSL Level | 1376135-1 |
| Datasheet download |  1376135-1.pdf |
| Part Number | 1376135-1 |
|---|---|
| Lead Finish | Gold |
| Rad Hard | No |
| Housing Material | Polyester |
| Product Dimensions | 10.2 x 17.69 x 10.95 mm |
| Contact Plating | Gold Over Nickel |
| Contact Material | Copper Alloy |
| Pitch | 2.5 mm |
| Operating Temperature | -55 to 105 °C |
| Termination Method | Solder |
| Family Name | Dynamic Series Wire-Applied Connectors |
| Gender | M |
| Mounting | Through Hole |
| Body Orientation | Right Angle |
| Max Processing Temp | 240|260|265 |
| Product Depth | 17.69 mm |
| Product Height | 10.95 mm |
| Product Length | 10.2 mm |
| Replacement Part Number | PART-1376135-1 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
TE Connectivity | Conn Backplane Power RCP 8 POS 2mm Press Fit RA Thru-Hole 24 Terminal 1 Port Download PDF datasheet for 5536614-1.pdf |
|
Bourns | Conn Battery F 6 POS 4mm Solder ST SMD 6 Terminal 1 Port Embossed T R Download PDF datasheet for 70ADJ-6-FL0G.pdf |
|
Amphenol-FCI | Conn Power RCP 8Power 16Signal POS 2.54mm Solder ST Thru-Hole 80 Terminal 1 Port Download PDF datasheet for 10106268-8004004LF.pdf |
|
Amphenol-FCI | Conn Power HDR 4Power 8Signal POS 7.62mm 2.54mm Solder RA Thru-Hole 40 Terminal 1 Port Tray Download PDF datasheet for 51939-558LF.pdf |
|
Amphenol-FCI | Conn Power HDR 2Power 16Signal POS 6.35mm 2.54mm Press Fit ST Thru-Hole 32 Terminal 1 Port Tray Download PDF datasheet for 51700-10101601CCLF.pdf |
|
TE Connectivity | Conn Power HDR 8 POS 4.14mm Solder ST Thru-Hole 8 Terminal 1 Port Download PDF datasheet for 1-794073-1.pdf |
|
Amphenol-FCI | Conn Power HDR 2Power POS 7.62mm Solder RA Thru-Hole 16 Terminal 1 Port Tray Download PDF datasheet for 51939-198CGDHDLF.pdf |
|
Amphenol-FCI | Conn Power RCP 10Power 24Signal POS 5.08mm 2.54mm Solder ST Thru-Hole 104 Terminal 1 Port Tray Download PDF datasheet for 51940-343LF.pdf |
|

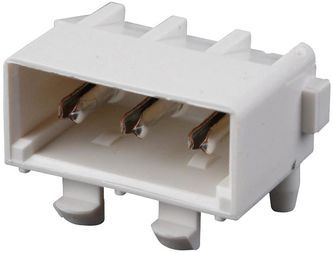

TE Connectivity | Conn Power HDR 3 POS 5.08mm Solder RA Thru-Hole 3 Terminal 1 Port Download PDF datasheet for 643488-1.pdf |
|
