Part Number | 179059-6 |
---|---|
Manufacturer | TE Connectivity |
Quantity in stock | 874760 Pieces |
Market Price | - |
Our Better Price | Send by email: [email protected] |
Delivery Time | 1 day (can ship today) |
Description | Conn Wire to Board RCP 36 POS 2.5mm Solder RA Thru-Hole |
Category | Connectors |
Family | Connector Headers and PCB Receptacles |
ROHS Compliant | Yes |
MSL Level | 179059-6 |
Datasheet download | ![]() |
Part Number | 179059-6 |
---|---|
Number of Rows | 2 |
Contact Material | Brass |
Number of Contacts | 36 |
Contact Plating | Pre-Tin |
Housing Color | Gray |
Product Dimensions | 63.5 x 22.5 x 16.9 mm |
Termination Method | Solder |
Housing Material | Polybutylene Terephthalate |
Type | Wire to Board |
Mounting | Through Hole |
Body Orientation | Right Angle |
Pitch | 2.5 mm |
Gender | RCP |
Max Processing Temp | 240 |
Product Depth | 22.5 mm |
Product Height | 16.9 mm |
Product Length | 63.5 mm |
Replacement Part Number | PART-179059-6 |
Weight | Contact us |
Country of Origin | - |
Image | Part Number and Brand | Brief Description and PDF Datasheet |
---|---|---|
Molex | MINI-FIT PLUS HEADER, 4.20MM PITCH Download PDF datasheet for 46014-0404.pdf |
|
Molex | Conn Shrouded Header HDR 36 POS 2mm Solder ST Thru-Hole Tray Download PDF datasheet for 0559173610.pdf |
|
Panasonic | Conn Board to Board HDR 14 POS 0.4mm Solder ST SMD Embossed T R Download PDF datasheet for AXK814145WG.pdf |
|
Molex | MINIFIT JR VERT HDR ASSY 14 CKT Download PDF datasheet for 0469990144.pdf |
|

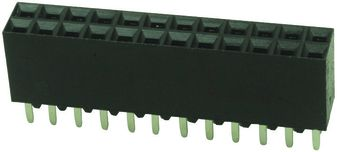

TE Connectivity | Conn Socket Strip SKT 24 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Download PDF datasheet for 6-534206-2.pdf |
|

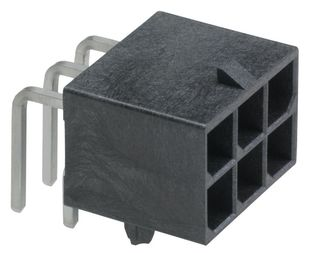

Molex | Conn Shrouded Header HDR 12 POS 5.7mm Solder RA Thru-Hole Tray Download PDF datasheet for 172064-0012.pdf |
|
